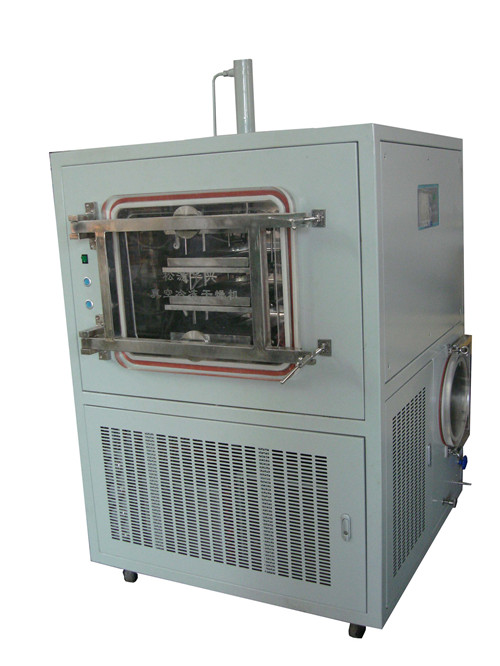

LGJ-50F Vacuum Freeze Dryer with stopper
LGJ-50F Freeze Dryer is suitable for small scale production or pilot scale test. This series is one of our patent products.
This series of dryers have heating shelf, freezing and drying process are finished in the same place. It changes traditional
complicated operation and prevents product from pollution.
Main Features
l With heating shelf , PID control standard, with programmable function
l Freeze and drying process are completed on shelves
l With organic glass observation window, the whole process is easy to see
l 32 groups programme can be stored, each programme can be set up 36 segments
l Silicon oil fills hollow shelves, with most uniform shelf temperature ,with consistent and repeatable drying effect
l Big touch screen LCD display, English interface, display of drying curves
l Internal surface of rectangular chamber and product tray are constructed of stainless steel
l Drying chamber separated to condenser, with better water capture capability and shorter drying time
l Air-let-in valve with nitrogen is available
l Eutectic point test device is optional
l Optional PC software to realize the remote control
Technical Parameter
Freeze drying area | 0.504㎡ |
Condenser capacity | 5kg /24h |
Condenser temperature | Min. ≤-55℃ |
Vacuum degree | ≤10 Pa |
Shelf temperature | -50℃----+70℃ |
Shelf layers | 3 layers; 100mm spacing |
Shelf size | 410x410x20 mm |
Bulk capacity | 5 L, 10mm thickness |
Vial capacity Φ12mm | 3690pcs |
Vial capacity Φ16mm | 2046 pcs |
Vial capacity Φ22mm | 1056 pcs |
Electric defrosting | Available |
Style of press | Hydraulic |
Cooling | Air，draughty,ambient temperature≤25℃ |
Voltage | 380V, 50Hz |
Dimension | 1165x1310x1950mm |
Weight | 850 kg |
Power | 5 KW |
