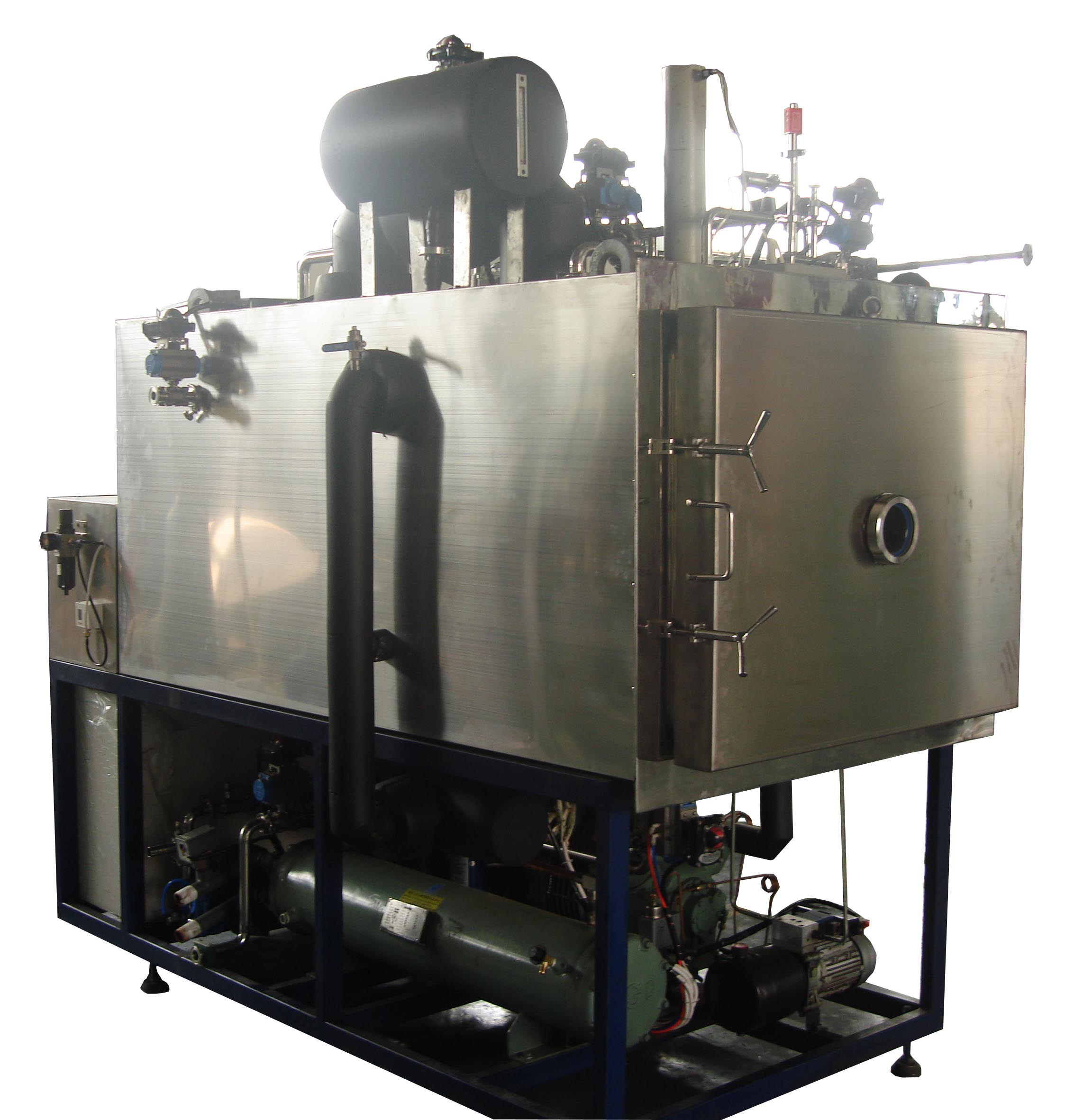

GZL-2 Vacuum Freeze Dryer
GZL-2 Series of Freeze Dryer is suitable for small scale production .
There are two types: standard type and top press type
Main Features
l PLC control standard, freeze-drying curve is programmable
l Pre-freeze and drying process are completed on shelf
l 32 groups programme can be stored, each programme can be set up 36 segments
l Display freeze drying curve, automatically record data, data can be output by USB flash disk
l Silicon oil fills hollow shelves, with most uniform shelf temperature,with consistent and repeatable drying effect
l Condenser separated from drying chamber ,better water capture capability and shorter drying time
l Bitzer refrigeration unit, with stable performance
l Internal surface of rectangular chamber and product trays are constructed of stainless steel
l Air-let-in valve with nitrogen is available
l Eutectic point test device is optional
l PC software is optional to achieve remote control
l CIP and SIP system is optional
Technical Parameter
Model | Unit | GZL-2 | |
standard | top press | ||
Drying area | ㎡ | 1.98 | 1.98 |
shelf | layer | 4+1 | 4+1 |
Shelf spacing | mm | 80-100 | 80-100 |
Shelf size | mm | 610x810x20 | 610x810x20 |
Bulk capacity | Liter | 20 | 20 |
Condenser capability | kg/24 hours | 40 | |
Shelf temperature | ℃ | -50~+70 | |
Vacuum degree | Pa | ＜10 | |
Condenser temperature | ℃ | Min. ≤-70 | |
Cooling | - | water 4.2 m3/h, temp.＜30℃ | |
Defrosting | - | Water 270 L/ batch, Temp. 50℃ | |
Vial capacity Φ12mm | Pcs | 12600 | 12600 |
Vial capacity Φ16mm | Pcs | 6800 | 6800 |
Vial capacity Φ22mm | Pcs | 3600 | 3600 |
Style of press | - | N/A | Hydraulic |
Dimension | mm | 1300x3300x2500 | 1300x3300x2500 |
Compressed air 0.7-1.0Mpa | m3/min. | 0.1 | 0.1 |
Weight | Kg | 2480 | 2600 |
Power | Kw | 10 | 11.5 |
