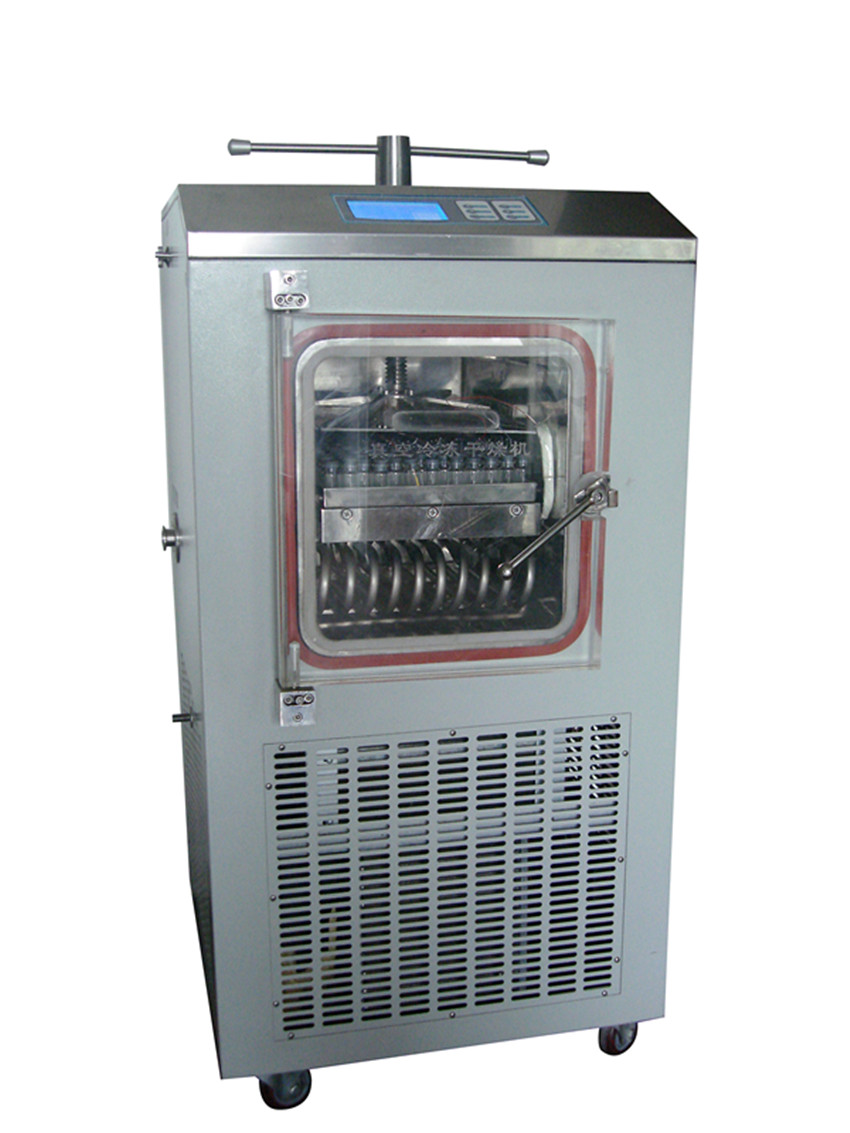

LGJ-10F Vacuum Freeze Dryer
LGJ-10F Freeze Dryer is suitable for freeze drying experiment in laboratory or
pilot scale .This series is our patent products.This series of dryers have electric
heating shelf.Freezing and drying process are finished in the same place. It changes
traditional complicated operation and prevents the product from pollution.
Main Features
l With electric heating shelf and PID control standard,with programmable function
l 16 programs can be stored, each program can be set up 32 segments
l LCD display and record drying curves
l Stopper by hand is available, vacuum sealing for vials can be completed.
l RS232 interface is optional, computer connected to display freeze-drying curve
l Air-let-in valve with nitrogen is optional
l Eutecticpoint test device is optional
Technical Parameter
Model | LGJ-10F (stopper type） |
Drying area | 0.1 ㎡ |
shelf | 1 layer |
Shelf spacing | 70 mm |
Shelf size | 265x400x25 mm |
Condenser temperature | Min.≤-80℃ |
Shelf temperature | -50~+65℃ |
Bulk capacity | 1 Liter |
Vacuum degree | ≤10 Pa |
Condenser capacity | 3kg/24 hours |
Voltage | 220v ,50 Hz |
Cooling | Air,draughty, ambient temperature≤25℃ |
Vial capacity Φ12mm | 777 Pcs |
Vial capacity Φ16mm | 434 Pcs |
Vial capacity Φ22mm | 220 Pcs |
Style of press | by hand |
Host Dimension | 605x610x(1200+130)mm |
Host weight | 195kg |
Power | 1700W |
