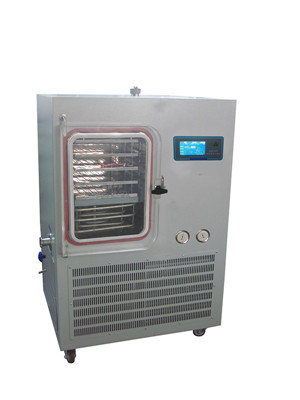

LGJ-50F Vacuum Freeze Dryer (standard type)
LGJ-50F Freeze Dryer is suitable for a small amount production, or pilot scale test. This series is one of our patent products.
This series of dryers have heating shelf. Freezing and drying process are finished in same place. It changes the traditional
complicated operation and prevents product from pollution.
Main Features
l With heating shelf and PID control standard, with programmable function
l With organic glass observation window, the whole process is easy to see
l 32 groups programme can be stored, each programme can be set up 36 segments
l The shelf temperature accuracy is ≤ 1℃
l Silicon oil fills hollow shelves, with most uniform shelf temperature ,consistent and
repeatable drying
l Big touch screen LCD display, English interface, display of drying curves
l Internal surface of rectangular chamber and product tray are constructed of stainless steel
l Air-let-in valve with nitrogen is available
l Eutectic point test device is optional
Technical Parameter LGJ-50F standard type
Freeze drying area | 0.7㎡ |
Condenser capacity | 5kg /24h |
Condenser temperature | Min. ≤-55℃ |
Vacuum degree | ≤10 Pa |
shelf temperature | -50℃----+70℃ |
Shelf layers | 3 layers; 50mm spacing |
Shelf size | 360x480x15mm |
Bulk capacity | 6L, 10mm thickness |
Vial capacity Φ12mm | 4920 pcs |
Vial capacity Φ16mm | 2728 pcs |
Vial capacity Φ22mm | 1408 pcs |
Electric defrosting | N/A |
Cooling | Air，draughty, ambient temperature≤25℃ |
Voltage | 380V, 50Hz |
Dimension | 960x785x1450mm |
Weight | 380 kg |
Power | 4.5 KW |
Remark: This product is for civilian use only
