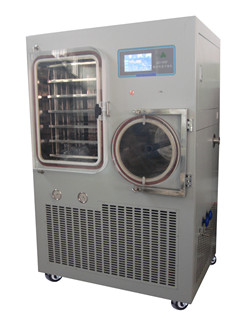

LGJ-100F Vacuum Freeze Dryer (standard type)
LGJ-100F freeze dryer is suitable for a small amount production or pilot scale test. This series is one of our patent products.
For this series, pre-freezing and drying process are completed on shelf. It changes traditional complicated operation and
prevent product from pollution.
Main Features
l PID control, freeze-drying curve is programmable,big touch screen LCD display drying curves
l With organic glass observation window, the whole process is easy to see
l The temperature error of shelf is less than or equal to 1℃
l Silicon oil fills hollow shelves, with most uniform shelf temperature, with consistent and repeatable drying effect
l Condenser separated from drying chamber ,better water capture capability and shorter drying time
l 32 groups programme can be stored, each programme can be set up 36 segments
l Internal surface of rectangular chamber and product trays are constructed of stainless steel
l Air-let-in valve with nitrogen is available
l Eutectic point test device is optional
l PC software is optional to achieve remote control
Technical Parameter
Freeze drying area | 1.0 ㎡ |
Condenser capacity | 15 kg /24h |
Condenser temperature | Min. ≤-70℃ |
Vacuum degree | ≤10 Pa |
shelf temperature | -50℃----+70℃ |
Shelf layers | 6+1 layers; 70mm spacing |
Shelf size | 360x480x15mm |
Bulk capacity | 10 L, 10mm thickness |
Vial capacity Φ12mm | 7920 pcs |
Vial capacity Φ16mm | 4092 pcs |
Vial capacity Φ22mm | 2112 pcs |
Electric defrosting | Available |
Cooling | Air，draughty, ambient temperature≤25℃ |
Voltage | 380V, 50Hz |
Dimension | 1020x860x1620 mm |
Weight | 500 kg |
Power | 6.5 KW |
