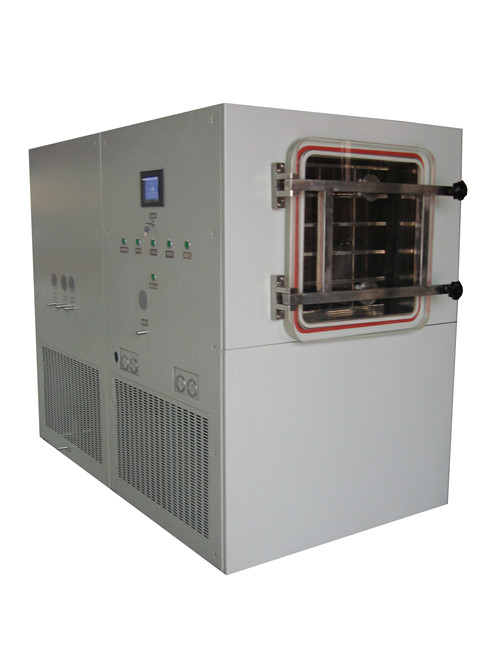

LGJ-200F Series of Freeze Dryer for small scale production
For this series, pre-freezing and drying process are completed on shelf. It changes traditional complicated operation
and prevents product from pollution.
Types: standard type and top press type
Main Features
l PLC control standard, freeze-drying curve is programmable
l 32 groups programme can be stored, each programme can be set up 36 segments
l With organic glass observation window, the whole process is easy to view
l The temperature accuracy of shelf is ≤ 1℃
l Silicon oil fills hollow shelves, with most uniform shelf temperature, with consistent and repeatable drying effect
l Condenser separated from drying chamber ,better water capture capability and shorter drying time
l Big touch screen, LCD display , English interface, display of drying curves
l Internal surface of rectangular chamber and product trays are constructed of stainless steel
l Air-let-in valve with nitrogen is available
l Eutectic point test device is optional
l PC software is optional to achieve remote control
Technical Parameter
Model | Unit | LGJ-200F | |
standard | top press | ||
Drying area | ㎡ | 2.25 | 1.98 |
shelf | layer | 5+1 | 4+1 |
Shelf spacing | mm | 80 | 100 |
Shelf size | mm | 500x900x20 | 610x810x20 |
Bulk capacity | Liter | 22 | 20 |
Condenser capability | kg/24 hours | 40 | |
Shelf temperature | ℃ | -50 ~ +70 | |
Vacuum degree | Pa | ≤10 | |
Condenser temperature | ℃ | Min. ≤-70 | |
Voltage | V, Hz | 380v ,50 Hz | |
Cooling | - | Air，draughty, ambient temperature≤25℃ | |
Defrosting | - | Water soaking | |
Vial capacity Φ12mm | Pcs | 14400 | 12600 |
Vial capacity Φ16mm | Pcs | 7800 | 6800 |
Vial capacity Φ22mm | Pcs | 4100 | 3600 |
Style of press | - | N/A | Hydraulic |
Dimension | mm | 1200x2100x1700 | 1300x3300x2500 |
Weight | Kg | 2300 | 2600 |
Power | KW | 13.5 | 15 |
Remark: This product is for civilian use only
