Product Introduction
B-POL Polarizing Microscope Outfits
|
Items
|
Specification
|
B-POL
|
| Eyepiece | WF 10×-18mm (Cross, Reticule 0.1mm) |
●
|
| WF 16×-13mm |
○
|
|
|
Non-stress
Achromatic Objective
|
4×
|
●
|
| 10× |
●
|
|
| 40× (S) |
●
|
|
| 20× |
○
|
|
| 60× (S) |
○
|
|
|
Mono Head
|
Inclined 30°, Rotatable 360°
|
●
|
|
Nosepiece
|
Quadplex
|
●
|
|
Analyzer Unit
|
0-90°，It can be moved out of the optical path for single polarizing observe.
|
●
|
|
Bertrand Lens
|
It can be moved out of the optical path.
|
●
|
|
λ Slip
|
First Class Red
|
●
|
|
1/4λ Slip
|
|
●
|
|
Quartz Wedge
|
(Ⅰ-Ⅳ Class)
|
○
|
|
Revolving Round Stage
|
Rotatable 360°, Division 1°, Vernier division 6’，can be locked.
|
●
|
| Polarizing Attached Mechanical Stage |
○
|
|
|
Condenser
|
Abbe N.A. 1.25
|
●
|
|
Polarizing Unit
|
It can be moved out of the optical path.
|
●
|
|
Filter
|
Blue
|
●
|
|
Illumination
|
6V/20W Halogen Lamp
|
●
|
|
LED Lamp
|
○
|
|
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

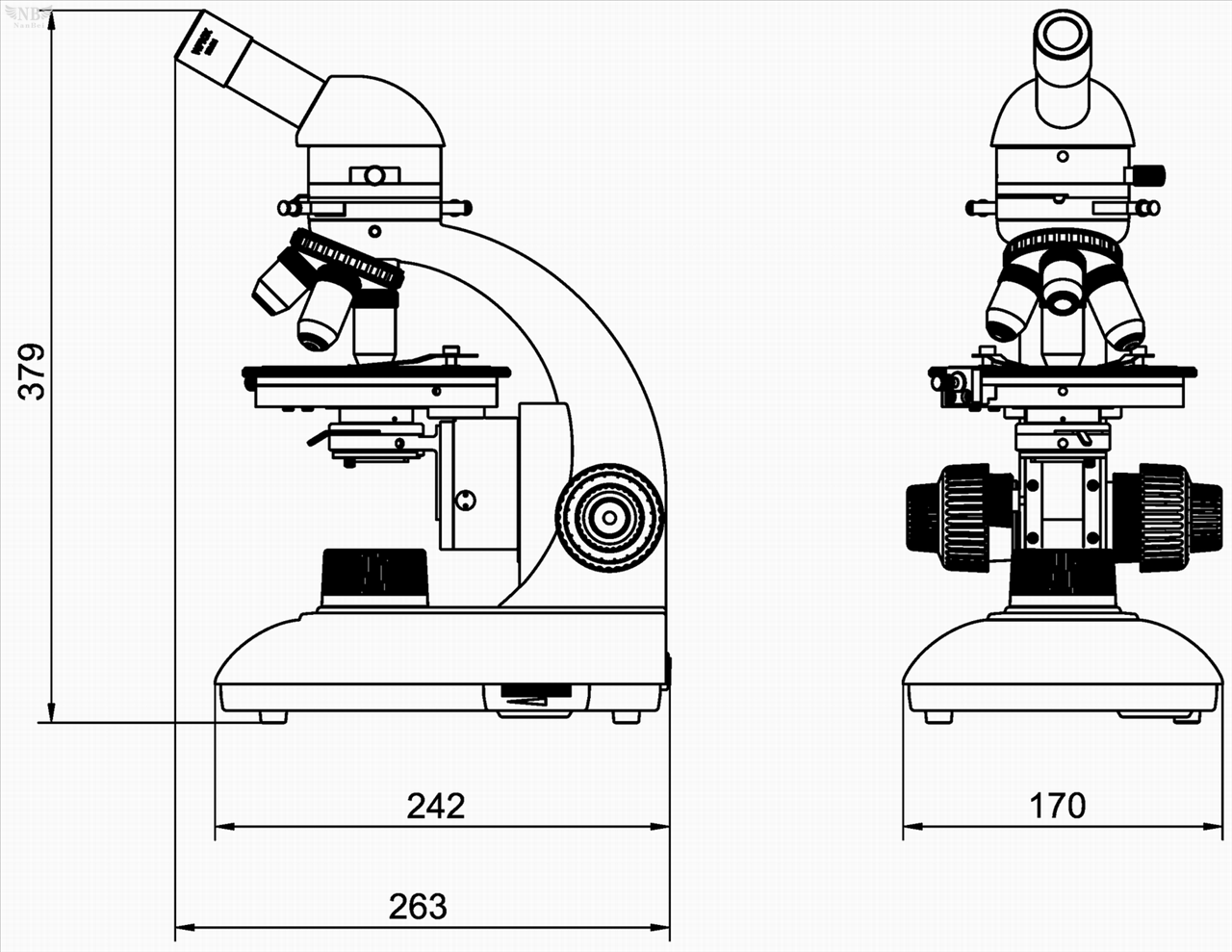

B-POL Polarizing Microscope Size（mm）:
