BK-POLR Polarizing Microscope

Brand:NANBEI

Model:BK-POLR

Application:

Product Introduction



点击进入图片链接BK-POLR

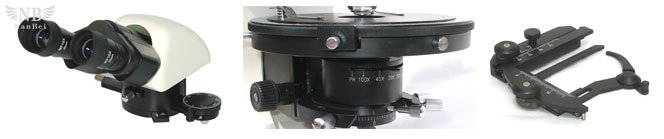

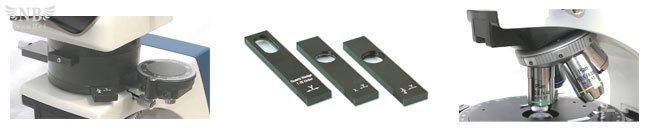

   Bertrand Lens                                               Compensation Unit                                   Centering Nosepiece

                  Combined Binocular                                              Analyser                                               Polarizing Attached Stage

BK-POLR Series Polarizing Microscope Outfits

Items

Specification

BK-POLR

Eyepiece

WF 10X-18mm

WF 10X-18 mm (Reticule 0.1mm)

Non-stress
Infinity
Plan Objective

10×

20× (S)

40× (S)

60× (S)

Seidentopf Binocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.

Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.
Light Distribution: 0:100

Nosepiece

Quintuple

Polarizing Unit

Rotatable 360°(Module Type, Can Be Locked)

Bertrand Lens

Inbuilt, Center Adjustable

λSlip

First Class Red

1/4λSlip



Quartz Wedge

(Ⅰ-Ⅳ Class)

Revolving Round Stage

Rotatable 360°, Center Adjustable, Division 1°, Vernier division 6’

Polarizing Attached Mechanical Stage

Condenser

Abbe N.A. 1.25      Non-stress

Polarizing Unit with Scale

Rotatable 360°,
Can Be Locked

Koehler Illumination

6V/20W Halogen Lamp

6V/30W Halogen Lamp

2 A Fuse

Spare: 1 pc

Filter

Blue,

Amber

Green

Neutral

C-mount

0.57×(Focus Adjustable),  1×

Adaptor for Digital Camera

Reflecting Polarizing Unit

Halogen Lamp House 12V/50W

Power House

Diaphragm Choosing Slide

Polarizer Choosing Slide

Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories
Packing Size: 750mm X 360mm X 450mm
Gross Weight: 16 kgs            Net Weight: 12.5 kgs
