BK-POL Polarizing Microscope

Items

Specification

BK-POL

BK-POLF

Eyepiece

WF 10X-18mm

●

WF 10X-18 mm (Reticule 0.1mm)

●

WF 10X-20mm

●

WF 10X-20 mm (Reticule 0.1mm)

●

Non-stress
Infinity
Plan Objective

4×

●

●

10×

●

●

20× (S)

●

●

40× (S)

●

●

60× (S)

○

○

Seidentopf Binocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.

●

●

Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.
Light Distribution: 0:100

○

○

Nosepiece

Quintuple

●

●

Polarizing Unit

Rotatable 360°(Module Type, Can Be Locked)

●

●

Bertrand Lens

Inbuilt, Center Adjustable

●

●

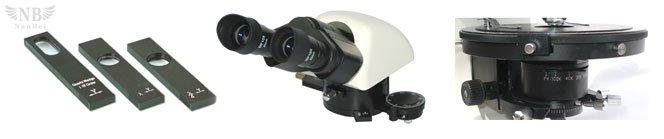

λSlip

First Class Red

●

●

1/4λSlip

●

●

Quartz Wedge

(Ⅰ-Ⅳ Class)

●

●

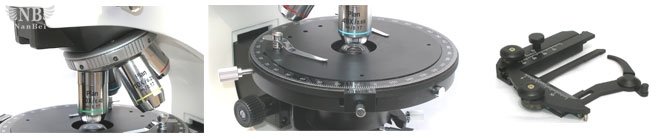

Revolving Round Stage

Rotatable 360°, Center Adjustable, Division 1°, Vernier division 6’

●

●

Polarizing Attached Stage

○

○

Condenser

Abbe N.A. 1.25      Non-stress

●

Polarizing Unit with Scale

Rotatable 360°,
Can Be Locked

●

●

Koehler Illumination

6V/20W Halogen Lamp

●

2 A Fuse

Spare: 1 pc

●

Filter

Blue,

●

Amber

○

Green

○

Neutral

○

C-mount

1×， 0.57X （Focus adjustable）

○

○

Adaptor for Digital Camera

○

○

Reflecting Polarizing Unit

Halogen Lamp House 12V/50W

●

Power House

●

Diaphragm Choosing Slide

●

Polarizer Choosing Slide

●
