CM10F

Brand:NANBEI

Model:CM10F

Application:

Facebook Twitter Google Linkedin

Product Introduction

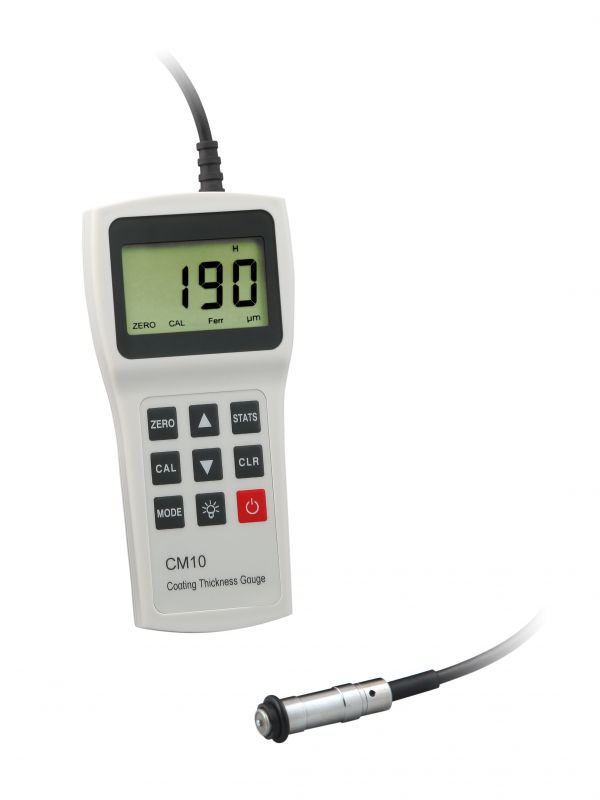

CM10F

Using the Magnetic Method (Fe) for Measuring the thickness of non- magnetic coatings on

steel, iron and other ferromagnetic metal substrates. Measuring Range is 0-3000μm

CM10F—Specification

Measuring Principle		Magnetic Method
Measuring Range(μm)		0-3000
Low Range Sensitivity(μm)		0.1
Tolerance(μm)		±(2%H+2)
Testing Condition (mm)	Min. Curvature Radius(凸)	1.5
	Min.Measuring Surface	∮7
	Min. Substrate Thickness	0.5
Display		High Contrast Segment Liquid Crystal Display (LED Backlight)
Statistics		N, MAX, MIN, MEAN and STD.DEV
Calibration		One-Point Calibration and Two-Point Calibration
Working Temperature		-10℃~+50℃, -20℃ in special requirement
Auto Power-off		Auto off after 3 minutes of inactivity
Power		2AA size batteries, low-voltage indication function
Weight		200g including batteries
Size		149mm×73mm×32mm (H×W×D)

Standard Configurations	Optional Configurations
CM10F Coating Thickness Gauge	Calibration foils
Calibration foils	Fe Zero plate
Zero Plate(Fe)
Communication Software & Cable
Sealed Carrying Case
Operating Manual, Packaging List. etc
