CM10N
CM10N—Specification
|
Measuring Principle |
Eddy Current Method |
|
|
Measuring Range(μm) |
0-2000 |
|
|
Low Range Sensitivity(μm) |
0.1 |
|
|
Tolerance(μm) |
±(2%H+2) |
|
|
Testing Condition (mm) |
Min. Curvature Radius(凸) |
3 |
|
Min.Measuring Surface |
∮5 |
|
|
Min. Substrate Thickness |
0.3 |
|
|
Display |
High Contrast Segment Liquid Crystal Display (LED Backlight) |
|
|
Statistics |
N, MAX, MIN, MEAN and STD.DEV |
|
|
Calibration |
One-Point Calibration and Two-Point Calibration |
|
|
Working Temperature |
-10℃~+50℃, -20℃ in special requirement |
|
|
Auto Power-off |
Auto off after 3 minutes of inactivity |
|
|
Power |
2AA size batteries, low-voltage indication function |
|
|
Weight |
200g including batteries |
|
|
Size |
149mm×73mm×32mm (H×W×D) |
|
|
Standard Configurations |
Optional Configurations |
|

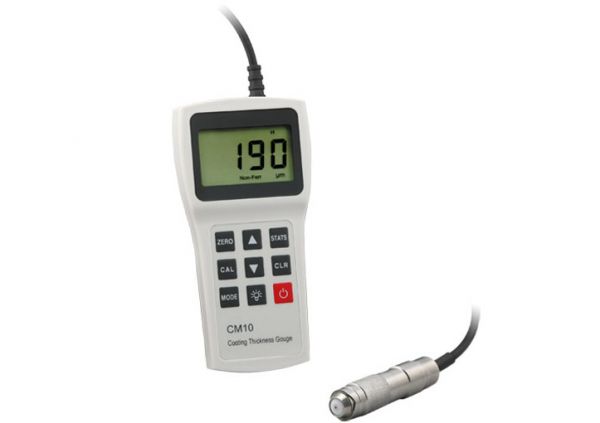

CM10N Coating Thickness Gauge |
Calibration foils |
|
Calibration foils |
Al Zero plate |
|
Zero Plate(Al) |
|
|
Communication Software & Cable |
|
|
Sealed Carrying Case |
|
|
Operating Manual, Packaging List. etc |
|
