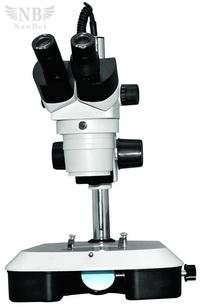

SZ660 Series Stereo Microscope
Technical Specification:
Optical System Greenough
Zoom Ratio 1∶6.6
Magnification 7×～46×
Objective Zoom Range 0.7×～4.6×
10×Eyepiece 10×/Φ22mm high point (with eyecup)
Standard Working Distance 110mm
Interpupillary Distance 54mm～76mm
Observing Tube Binocular/Trinocular/built-in digital camera
45°inclined ，360°rotatable.
Up Illumination 3W LED （optional :12V/15W halogen）
Down Illumination 3W LED （optional :12V/15W halogen）
Optional Eyepiece 15×/Φ17mm , 20×/Φ13mm
Additional Objective 0.5× W.D. 189mm
0.75× W.D. 122mm
2× W.D. 36mm

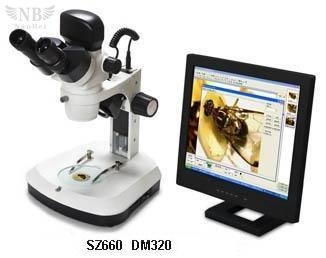

SZ660DM320/500 Built-in Digital Camera Microscope Performance
◇ Dustproof、dampproof、prevent disassembling built-in chip integrative design.
◇ Light distribution 20:80, eyepiece observation synchronized with computer imaging without switching.
◇ Built-in 3MP/5MP Digital camera system,1/2’’CMOS color sequential scanning .
◇ USB2.0 connection, without external power supply.
◇ OPTPro image analysis software , Available for WINDOWS 2000/XP/Vista system.

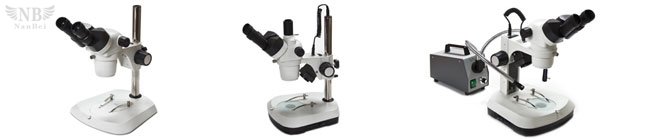

SZ660BP SZ660-T2L SZ660B2L with cold Fiber light source

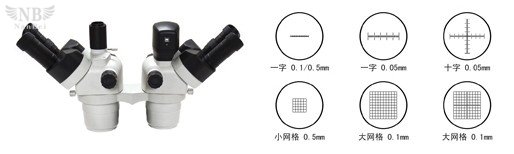

Trinocular synchronized imaging,eyepiece observation Different size reticule eyepiece
synchronized with digital imaging .
Additional Objectives Eyepiece C-mount

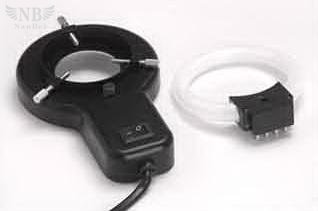

Ring Fluorescent light Ring LED light 2D Travelling stage Brightness Adjustable Halogen light

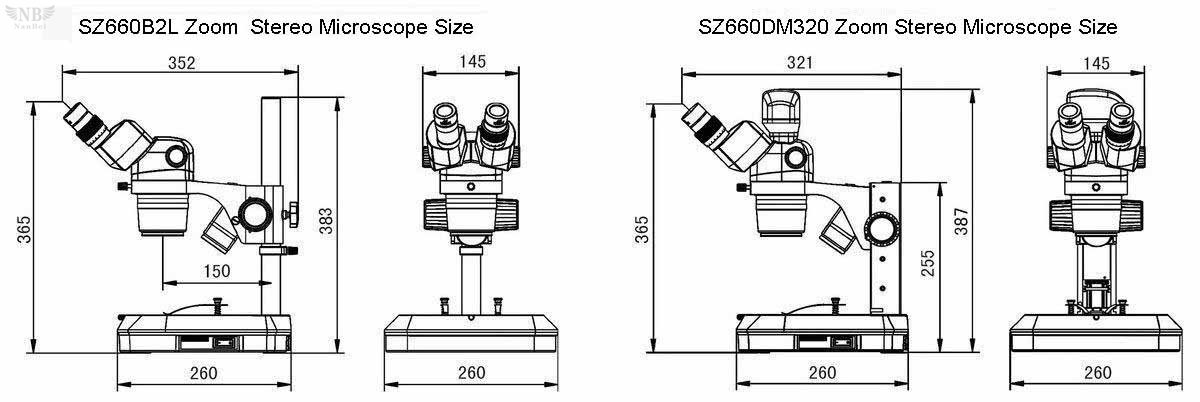

SZ660 B2Lwith Rectangular Big Base SZ660 B2L with Reflector Base SZ660B2L withUniversal Stand
Magnification:
|
Additional Objectives
|
0.5×
|
0.75×
|
1×(Built in)
|
2×
|
|
W.D.
|
189mm
|
122mm
|
110mm
|
36mm
|
|
10×/Φ22 mm
|
Magnification
|
3.5～23
|
5.25～34.5
|
7～46
|
14～92
|
|
Field Dia.（mm）
|
62.86～9.57
|
41.90～6.38
|
31.43～4.78
|
15.71～2.39
|
|
15×/Φ16 mm
|
Magnification
|
5.25～34.5
|
7.88～51.75
|
10.5～69
|
21～138
|
|
Field Dia（mm）
|
48.57～7.39
|
32.38～4.93
|
24.29～3.70
|
12.14～1.85
|
|
20×/Φ13 mm
|
Magnification
|
7～46
|
10.5～69
|
14～92
|
27～184
|
|
Field Dia.（mm）
|
37.14～5.65
|
24.76～3.77
|
18.57～2.83
|
9.29 ～1.41
|
SZ660 Series Zoom Stereo Microscope outfits:
|
Items
|
SZ660BP
|
SZ660B2L
|
SZ660TP
|
SZ660T2L
|
SZ660DM320
|
|
Binocular
|
●
|
●
|
|
|
|
|
Trinocular
|
|
|
●
|
●
|
|
|
Digital head
|
|
|
|
|
●
|
|
Eyepiece 10X/Φ22mm
|
●●
|
●●
|
●●
|
●●
|
●●
|
|
Focusing unit
|
●
|
●
|
●
|
●
|
●
|
|
No light
|
●
|
|
●
|
|
○
|
|
Reflecting 3W LED
|
|
●
|
|
●
|
●
|
|
Transmitting 3W LED
|
|
●
|
|
●
|
●
|
|
Black & white Plate
|
●
|
●
|
●
|
●
|
●
|
|
Glass Plate
|
|
●
|
|
●
|
●
|
|
Pillar stand
|
●
|
●
|
●
|
●
|
○
|
|
Arm stand
|
○
|
○
|
○
|
○
|
●
|
|
Reflector base
|
○
|
○
|
○
|
○
|
○
|
|
Rectangular big base
(330×300mm)
|
○
|
○
|
○
|
○
|
○
|
|

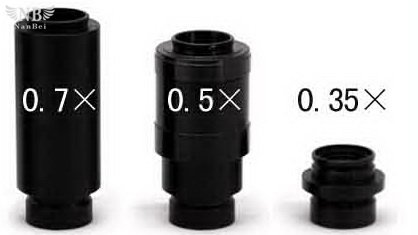

C-mount 0.35X, 0.5X, 0.7X
|
|
|
○
|
○
|
|
|
Adaptor for digital photo camera
|
|
|
○
|
○
|
|
|
0.5X/0.75X/2X Objective
|
○
|
○
|
○
|
○
|
○
|
|
15X/20X Eyepiece
|
○
|
○
|
○
|
○
|
○
|
|
Stage Micrometer
|
○
|
○
|
○
|
○
|
●
|
|

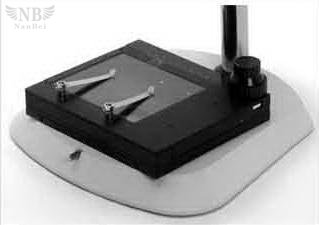

Two dimensional travelling table
|
○
|
○
|
○
|
○
|
○
|
|
Single pole Universal Stand
|
○
|
○
|
○
|
○
|
○
|
|
Double-pole Universal Stand
|
○
|
○
|
○
|
○
|
○
|
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
