Zoom ratio 1∶7.6
Magnification 6.6×～50×
10×Eyepiece 10×/Φ23mm high point, diopter adjustable
Standard working distance 110mm
Interpupillary distance 54mm～76mm
Observing tube Binocular/Trinocular/built-in digital camera
45°inclined ，360°rotatable.
Up illumination 3W LED （optional :12V/15W halogen）
Down illumination 3W LED （optional :12V/15W halogen）
Optional eyepiece 20×/Φ13mm（focus adjustable）,
25×/Φ11mm（focus adjustable）
Additional objective 0.5× W.D. 189mm
0.75× W.D. 122mm
2× W.D. 36mm
SZ760 Series Objective，Eyepiece Parameter List:
|
Objectives |
0.5X |
0.75X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
122mm |
110mm |
36mm |
|
|
10XEyepiece/ φ23mm |
Magnification |
3.3-25 |
5.0-37.5 |
6.6-50 |
13.2-100 |
|
Field dia. (mm) |
62.86～9.57 |
41.90～6.38 |
31.43～4.78 |
15.71～2.39 |
|
|
20XEyepiece/ φ13mm |
Magnification |
7～46 |
10.5～69 |
14～92 |
28～184 |
|
Field dia. (mm) |
37.14～5.65 |
24.76～3.77 |
18.57～2.83 |
9.29～1.41 |
|
|
25XEyepiece / φ11mm |
Magnification |
8.8～57.5 |
13.1～86.3 |
17.5～115 |
35～230 |
|
Field dia. (mm) |
31.43～4.78 |
20.95～3.19 |
15.71～2.39 |
7.86～1.20 |
|
SZ760 Series Zoom Stereo Microscope Outfits:
|
Items |
SZ760BP |
SZ760B2L |
SZ760TP |
SZ760T2L |
SZ760DM320 |
|
|

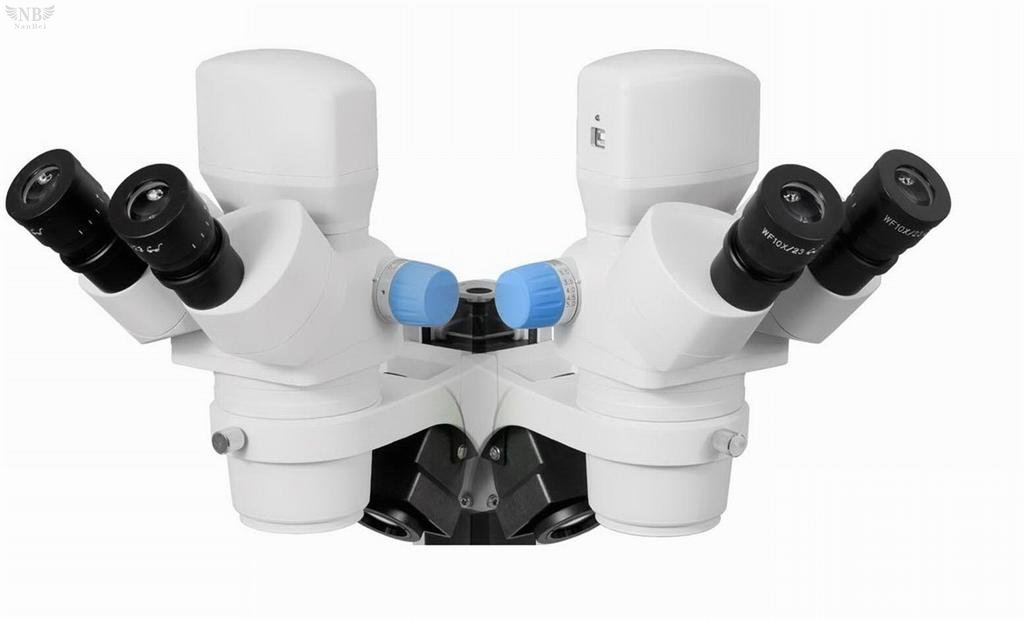

Main Body (1X objective built in) |
Binocular |
● |
● |
|
|
|
|
Trinocular |
|
|
● |
● |
|
|
|

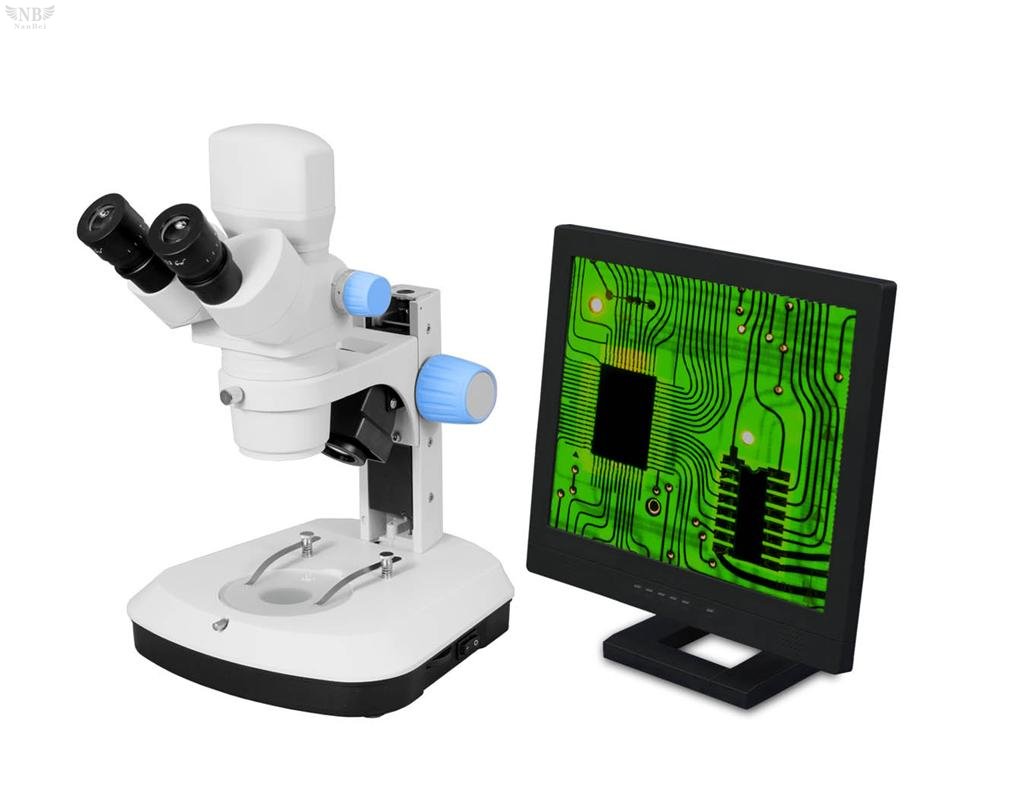

Digital |
|
|
|
|
● |
|
|
Eyepiece 10×/23㎜ |
●● |
●● |
●● |
●● |
●● |
|
|
Focusing unit |
● |
● |
● |
● |
● |
|
|
No light |
● |
|
● |
|
○ |
|
|

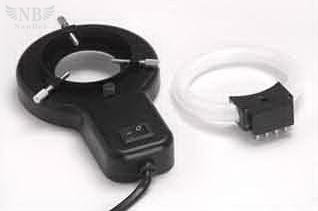

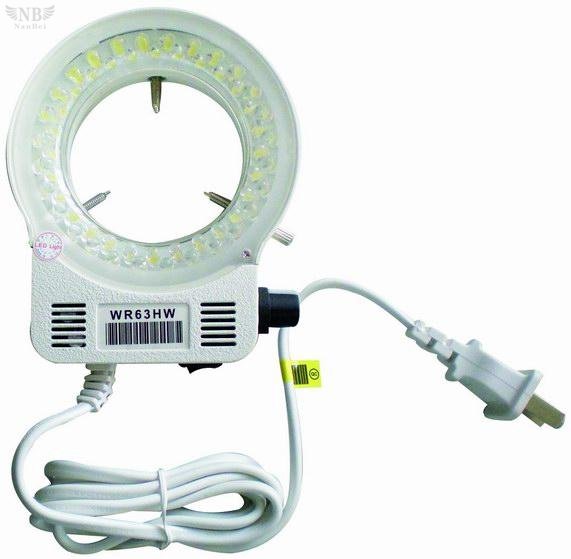

Reflecting 3W LED |
|
● |
|
● |
● |
|
|
Transmitting 3W LED |
|
● |
|
● |
● |
|
|
Black & White Plate |
● |
● |
● |
● |
● |
|
|
Glass Plate |
|
● |
|
● |
● |
|
|
Arm stand |
● |
● |
● |
● |
● |
|
|
Pillar stand |
○ |
○ |
○ |
○ |
○ |
|
|

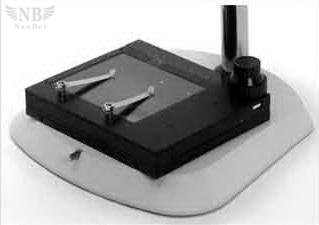

Reflector base |
○ |
○ |
○ |
○ |
○ |
|
|
Rectangular big base （330 X300mm） |
○ |
○ |
○ |
○ |
○ |
|
|

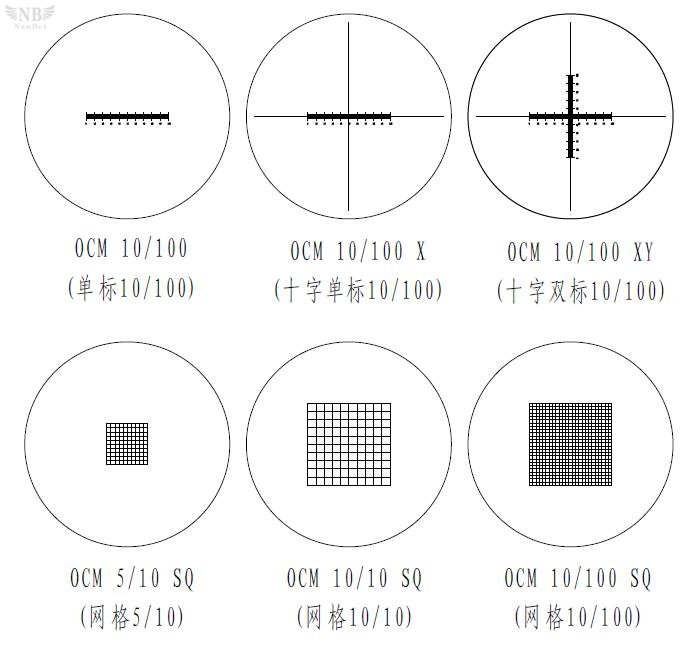

Stage Micrometer |
○ |
○ |
○ |
○ |
● |
|
|

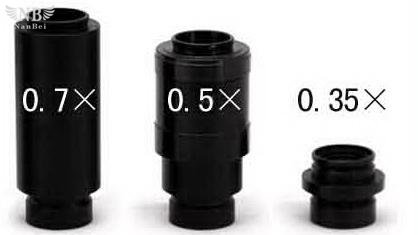

0.35X /0.5X /0.7X C-mount |
|
|
○ |
○ |
|
|
|
Adaptor for digital photo camera |
|
|
○ |
○ |
|
|
|
0.5X/ 0.75X/ 2XObjective |
○ |
○ |
○ |
○ |
○ |
|
|
20X/ 25X Eyepiece |
○ |
○ |
○ |
○ |
○ |
|
|
Two dimensional travelling table |
○ |
○ |
○ |
○ |
○ |
|
|

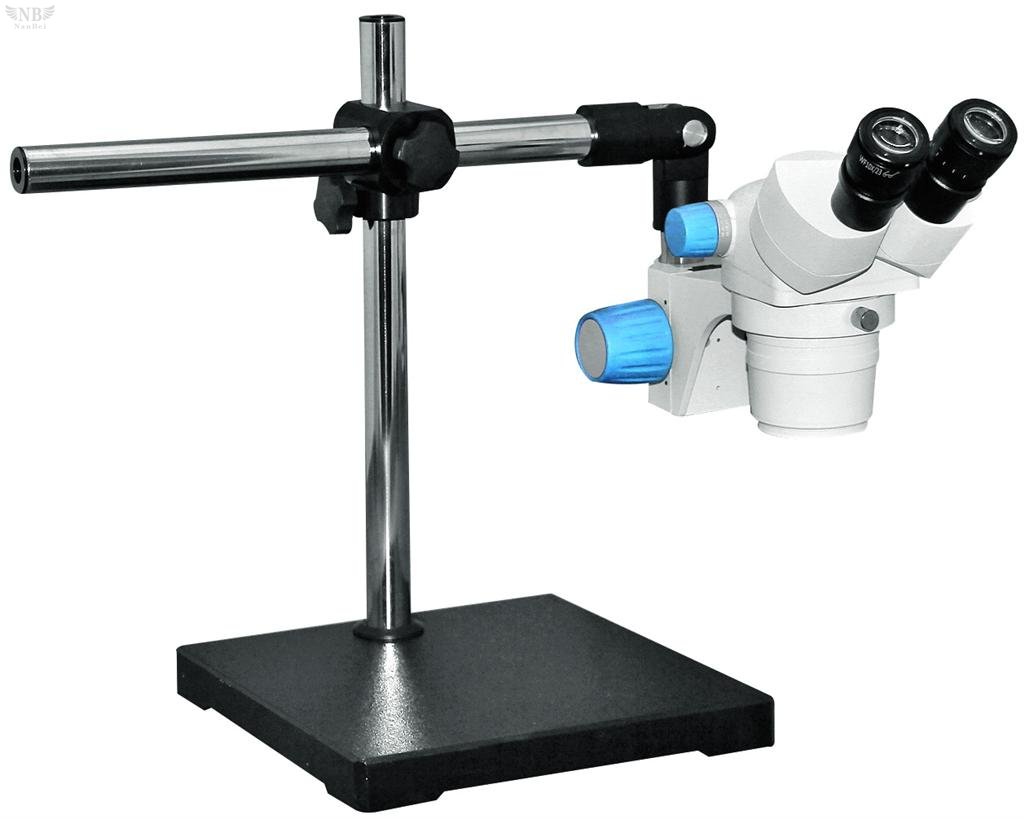

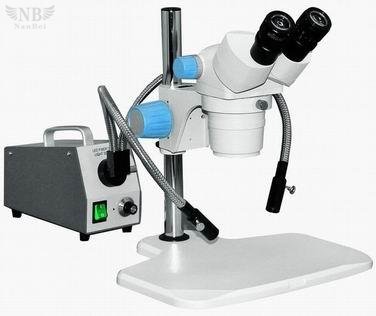

Single pole Universal Stand |
○ |
○ |
○ |
○ |
○ |
|
|
Double-pole Universal Stand |
○ |
○ |
○ |
○ |
○ |
|
Remark："●" Is Standard Attachment. "○" Is Optional Accessories.

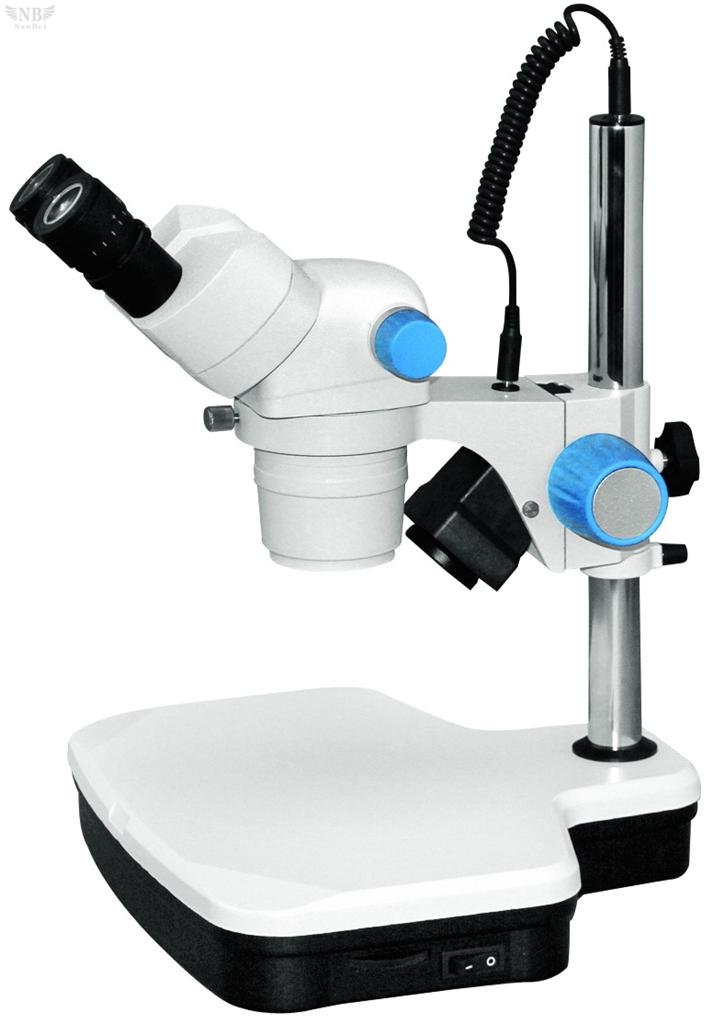

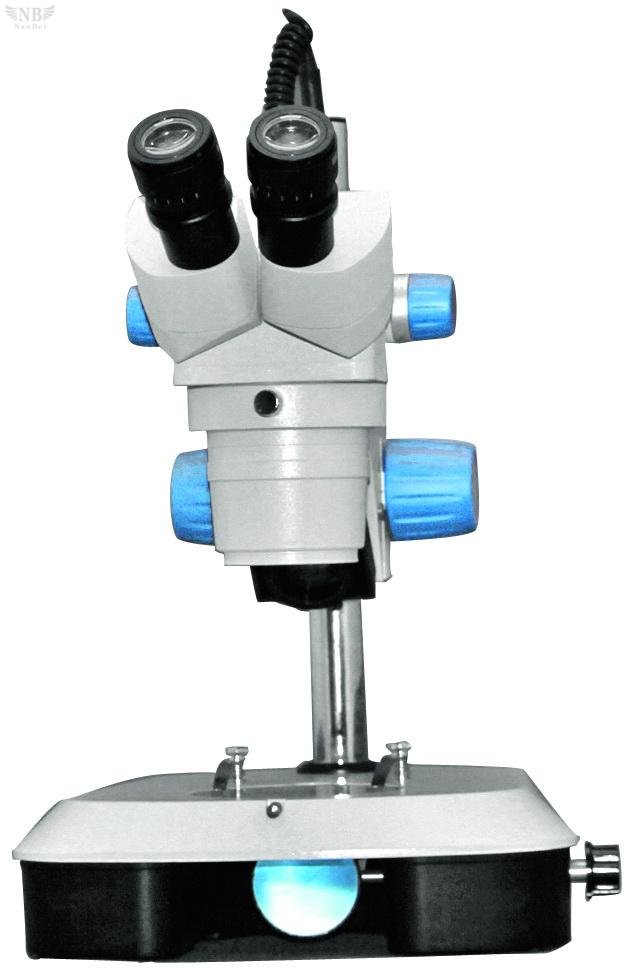

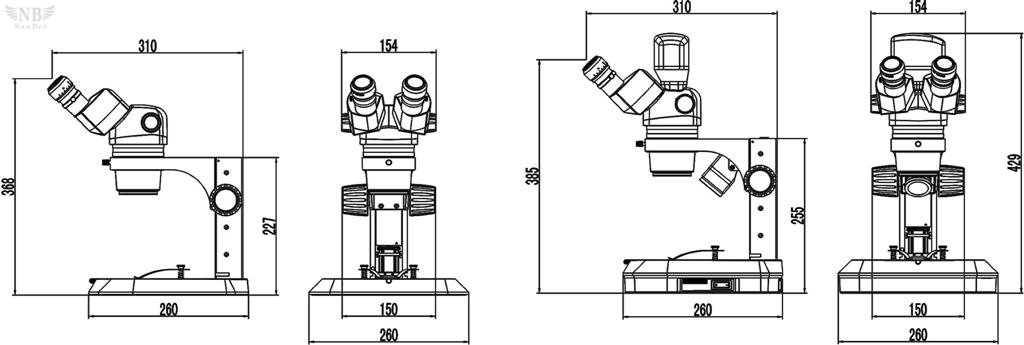

SZ760BP Zoom Stereo Microscope Size SZ760DM320 Zoom Stereo Microscope Size

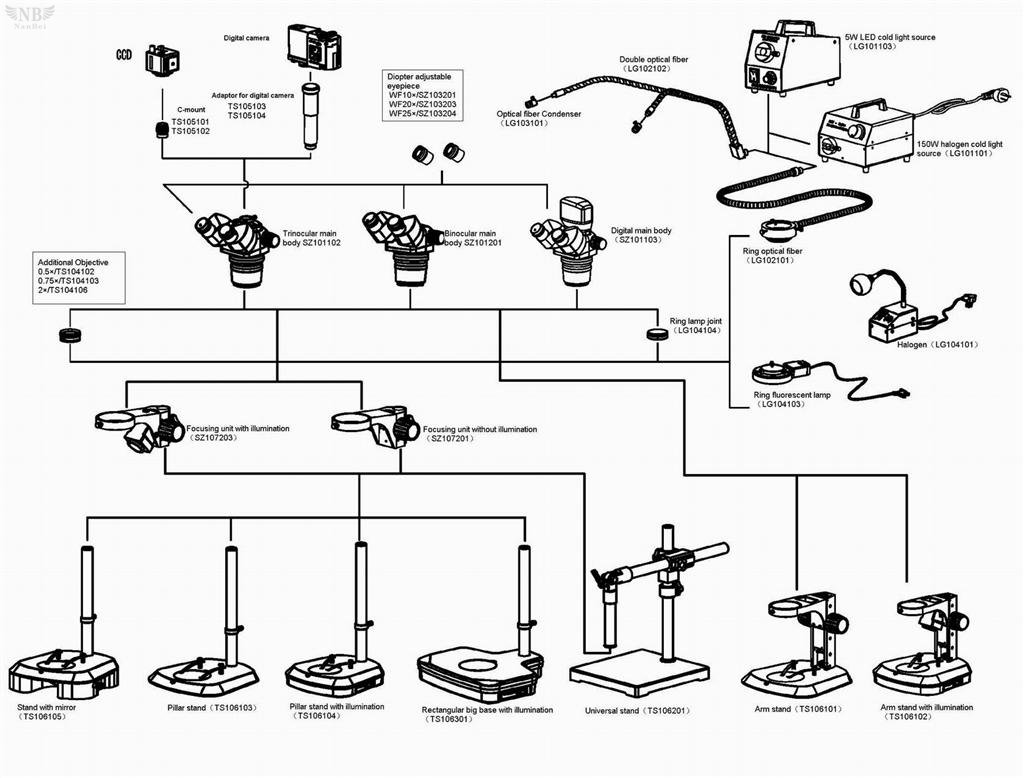

SZ760 Series zoom stereo microscope General layout diagram
