Introduction
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window
According to the performance criteria:
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005

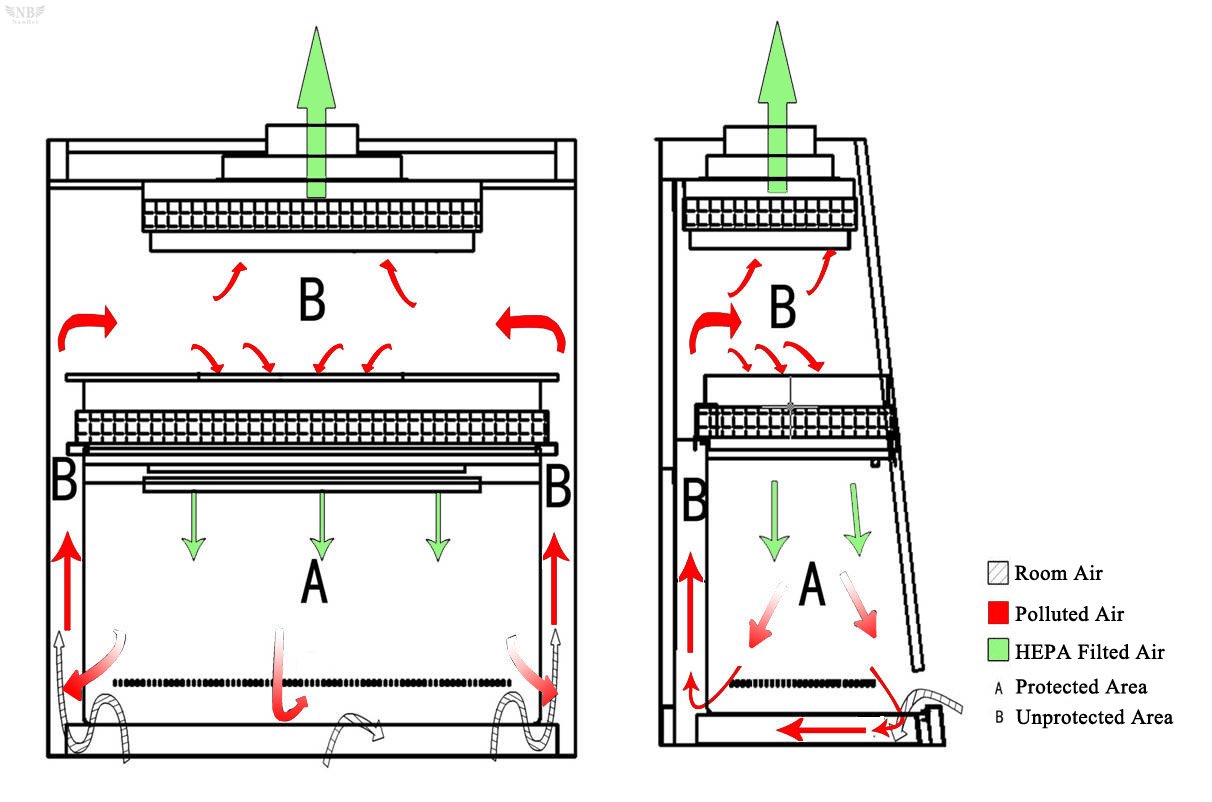

Air Flow Pattern and Protected Area：
Parameter of BSC-1100II A2-X:
|
Internal Size(mm) |
900× 600× 660 |
|
External Szie(mm) |
1100× 850× 2200 |
|
Tested Opening |
Safety Height ≤ 200 mm |
|
Max Opening |
400 mm |
|
Inflow Velocity |
0.53 m/s |
|
Downflow Velocity |
0.33 m/s |
|
Filter |
Two HEPA filter 99.999% efficient(0.3 microns) |
|
Front Window |
Two-layer toughened glass > 5mm |
|
Noise |
≤ 65 dB |
|
UV Lamp |
20W× 1 |
|
Fluorescent Lamp |
21W× 1 |
|
Lighting(Lux) |
800 |
|
Power(W) |
1200 |
|
Water and Gas Tap |
Water tap: 1 Gas tap: 1 |
|
Waterproof Socket |
2 |
|
Display |
VFD display |
|
Control System |
Microprocessor |
|
Airflow System |
70% air recirculation, 30% air exhaust |
|
Material |
Work zone interior is made of 304 stainless steel |
|
|
Body: Expoxy coated cold rolled steel |
|
Base Stand |
Height: 635mm |
|
caster Wheel |
Directional wheel |
|
Electrical |
110~240V/50~60Hz (optional) |
|
Net Weight(kg) |
240 |
|
Gross Weight(kg) |
290 |
|
Package(mm) |
1250× 1050× 1870 |
|
Standard Configuration |
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base Stand |
|
Optional Accessory |
Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer |
