Product Introduction

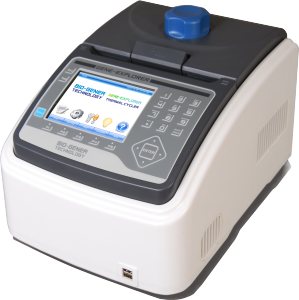

Thermal Cycler (PCR) / Gene-Explorer
This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5℃, cycle times ＞600000. More advanced technologies applied on the product: Windows operating system; color dispay screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.
Key Features：
1). Four independent control of semiconductor technology.
2). High-performance universal power supply.
2). High-performance universal power supply.
3). Large 5.6-inch high-definition TFT LCD display.
4). Windows operating system, the humanity inter-face.
5). Curve graphic display.
6). LAN online and wireless Bluetooth printing.
7). Power-down data protection.
8). Stepless adjustable hot lid.
9). Lid can be positioned at any angle.
10). Six modules can be replaced easily to meet the requirements of different experiments.
|
Model
|
GE9611/6021/4851/
4831/3841
General
|
GE9612/6022/4852/
4832/3842
Gradient
|
|
Capacity
|
96×0.2ml , 60×0.5ml , Double 48×0.2ml ,
48×0.2ml+30×0.5ml,384well , In-situ Plate
|
|
|
Temperature Range
|
0～100℃
|
|
|
Max. Heating Rate
|
5℃/s
|
|
|
Max. Cooling Rate
|
4℃/s
|
|
|
Uniformity
|
≤±0.2℃
|
|
|
Accuracy
|
≤±0.1℃
|
|
|
Display Resolution
|
0.1℃
|
|
|
Temperature Control
|
Block\Tube
|
|
|
Ramping Rate Adjustable
|
0.1～5℃
|
|
|
Gradient Uniformity
|
/
|
≤±0.2℃
|
|
Gradient Accuracy
|
/
|
≤±0.2℃
|
|
Gradient Temp. Range
|
/
|
30～100℃
|
|
Gradient Spread
|
/
|
1～30℃
|
|
Hot Lid Temperature
|
30～110℃
|
|
|
Hot Lid Height Adjustable
|
Stepless Adjustable
|
|
|
Number of Programs
|
1000 +(USB FLASH)
|
|
|
Max. No. of Step
|
30
|
|
|
Max. No. of Cycle
|
99
|
|
|
Time Increment/Decrement
|
1 Sec ～ 9 Min 59 Sec
|
|
|
Temp. Increment/Decrement
|
0.1～9.9℃
|
|
|
Pause Function
|
Yes
|
|
|
Auto Data Protection
|
Yes
|
|
|
Hold at 4℃
|
Forever
|
|
|
Print
|
Yes
|
|
|
LAN to computer
|
Yes
|
|
| LCD |
5.6inch，640×480 Pixels, TFT
|
|
|
Communication
|
USB2.0 , LAN
|
|
|
Dimensions
|
380mm×240mm×260mm (L×W×H)
|
|
|
Weight
|
8.5kg
|
|
|
Power Supply
|
85～264VAC , 47～63Hz , 600 W
|
|
