2XZ Series Direct-drive Rotary Vane Vacuum Pump
This series of pumps are elementary equipment for pumping air from sealed vessels. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, diffusion pump, and molecular pump. The pumps are also used in making electrical vacuum cases, vacuum jointing, printing, photoengraving, food packaging, vacuum forming, refrigeration equipment repair and instruments or a set of equipments in laboratory, It is widely used in aerospace, semiconductor , coating , food packaging ,drying machines, refrigeration equipment, scientific research, medical treatment, electronics, chemicals, medicine and laboratory or laboratory of universities and colleges.
Features:
a. Small volume, low weight and low noise
b. Equipped with gas ballast valve to pump a little water vapor.
c. Equipped with oil anti-suckback device.
d. 2XZ-2 with small caliber, 2XZ-4 pump with vacuum drying oven, freezing dry machine and printing machine.

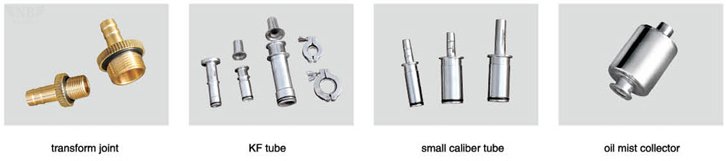

e．Equipped with small caliber transforming joints and KF joints.
Technical parameters:
|
Model |
2XZ-0.25 |
2XZ-0.5 |
2XZ-1 |
2XZ-2 |
2XZ-4 |
|
|
Pumping speed(L/s) |
0.25 |
0.5 |
1 |
2 |
4 |
|
|
Ultimate Pressure (Pa) |
Partial pressure |
≤6*10-1 |
≤6*10-2 |
|||
|
Total pressure |
≤6.5 |
≤1.33 |
||||
|
Rotary speed(r/min) |
1400 |
|||||
|
Motor power(Kw) |
0.12 |
0.18 |
0.25 |
0.37 |
0.55 |
|
|
Voltage(V) |
220 |
220/380 |
||||
|
Inlet diameter(mm) |
Φ15 |
Φ20 |
Φ20 |
Φ30 |
Φ30 |
|
|
Noise level(dBA) |
63 |
65 |
65 |
66 |
68 |
|
|
Oil capacity(L) |
0.5 |
0.6 |
0.7 |
1 |
1.2 |
|
|
Dimensions(mm) |
403*130*240 |
447*168*260 |
496*168*260 |
514*168*282 |
565*168*282 |
|
|
G.W/N.W(Kg) |
16/15 |
17/16 |
18/17 |
22/20 |
24/22 |
|
