Specifications
Handheld Mini Electo-Melt FurnaceMax Temperature: 1150CMelting Capacity: 3kg Silver, 4.5kg gold110V/220V,1700W
|
image |
Model |
Product Name |
Specifications |
|
|
NMF-1kg |

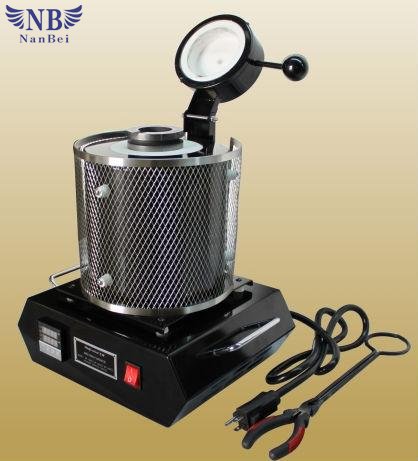

Handheld Mini
Electro-Melt Furnace |
110V/220V, Single Phase, 1500w
Crucible Size: OD 65*h 125mm
Melt Capacity: 1kg silver, 2kg gold
Max temperature 1150C (or 2102F)
Gross weight 15kg |
|
NMF-2kg |
110V/220V, Single Phase ,1600W
Crucible Size: OD 72*H 155mm
Melt Capacity: 2kg silver, 3kg gold
Max temperature 1150C (or 2102F)
Gross weight 15.5kg |
||
|
NMF-3kg |
110V/220V, Single Phase ,1700W
Crucible Size: OD 75*H 170mm
Melt Capacity: 3kg silver, 4.5 kg gold
Max temperature 1150C (or 2102F)
Gross weight 16kg |
||
|
QSR |
|
Quartz Stirring Rod |
Transparent type |
|
TC |
|
Thermo Couple |
For detecting the temperature |
|
TMC |
|
Temperature Controller |
/ |
|
HCW |
|
Heating Chmber with Wire |
Heating element of the Mini Furnce |
|
HTRG |
|
High TEMERATURE RESITING Glove |
/ |
|
CT |
|
Crucible Tong |
/ |
We have 0.5kg, 1kg, 2kg, 2.5kg, 3kg, 4kg, 5kg, 5.5kg, 6kg, 8kg, 12kg, 16kg etc for your option. International size: 1kg, 2kg, 3kg, USA Kerr 1kg, 3kg etc melting crucibles. What's more we can make tailored products based on your size and samples, high purity, durable.
