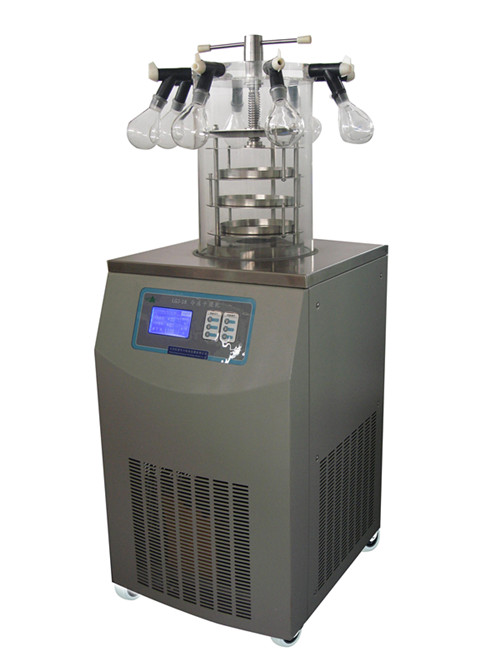

LGJ-18 manifold top press type freeze dryer
LGJ-18 vacuum freeze dryer is suitable for experiment in laboratory and a small amount production.
Main features
l CFC Free refrigeration
l LCD display drying curves,English interface
l Big opening condenser has pre-freeze function
l low noise compressor, good efficiency,long service life
l Condenser and operation panel are all stainless steel
l Drying Chamber with organic glass is safe and visible
l Shelf and tray are stainless steel
l Small volume , easy and convenient operation
l Vertical equipment with caster
l Nitrogen valve is optional
l Eutectic point test device is optional
l Communication interface is optional
l Cascade refrigeration is optional for -80℃ device
Technical Parameter (LGJ-18 manifold top press type)
Freeze drying area | 0.09㎡ |
Condenser capacity | 6 L /24h |
Condenser temperature | -55℃ (-80 ℃ optional ) |
Vacuum degree | < 10 Pa |
Material tray | Ф200mm, 3 layers |
Bulk capacity | 0.9 L, 10mm thickness |
Vial capacity Φ12mm | 990 pcs |
Vial capacity Φ16mm | 555 pcs |
Vial capacity Φ22mm | 270 pcs |
Style of press | By hand |
Manifold | with 8 ports |
Flask | 1000ml, 500ml, 250ml, 100ml |
Cooling | Air, draughty, ambient temperature≤25℃ |
Voltage | 220V, 50Hz |
Power | 1400W |
Host dimension | 635×540×(970+430) mm |
Host weight | 105 kg |
