Product Introduction

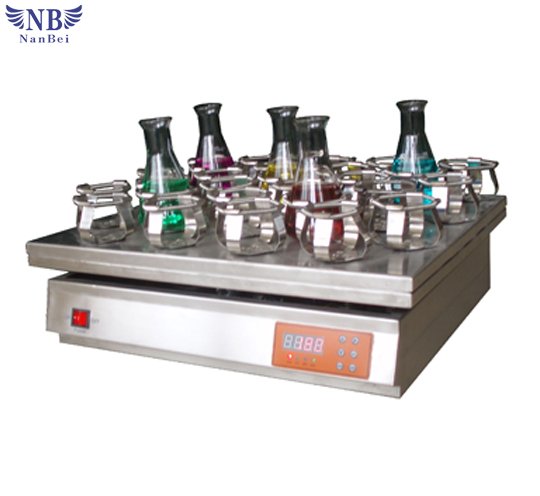

Single-decked laboratory shaker with small capacity :
Features:
1. Well constructed for long term operation.
2. Advance technology ensuring mechanical stability and reliability of operation.
3. Shaking mechanism is constructed with chromium alloy material and high quality cast iron.
4. Circuit breaker protect against excess current, power-off memory to return to original setting, soft start prevents splashing, auto cut-off if motor overheat.
5. Precision microprocessor control system, accuracy of speed ± 1rpm.
6. Brushless high torque motor, maintenance free.
Parameters:
| Model | HNY-810 | HNY-820 | HNY-850 | HNY-880 |
| Control mode | P.I.D microcomputer processing chip | |||
| Oscillation mode | convolution | Reciprocate | convolution | Reciprocate |
| Display | LED digital display | |||
| Cyclotron frequency range | 30-300rpm/min | |||
| Cyclotron accuracy | ±1 | |||
| Shake plate shimmy range(mm) | Ø26
|
|||
| Max configuration | 100ml*22/250ml*12/500ml*8 | 250ml*92/500ml*66/1000ml*36(double)
|
||
| Standard configuration | 250ml*12 | 250ml*46(double) | ||
| Plate size(mm) | 430*325 | 800*600 | ||
| Plate number | 1 | 2(double) | ||
| Size(mm) | 456*380*195 | 900*640*780(double) | ||
| Power(w) | 80 | 200 | ||
| Voltage | AC220±10% 50-60HZ | |||
