3T/24h Granular ice machine

Brand:NANBEI

Model:NB3T-R2W

Application:

Product Introduction

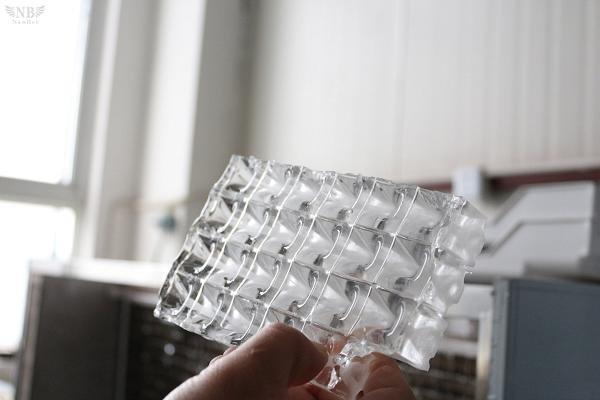

   Edible granular ice machine is one type of ice making machines. Because the ice shape is the grain type, so it’s called granular ice. In the market it’s the smallest type of ice, melting resistance best . Suitable for drinking supplies modulation, decoration, food preservation and so on, so it is mostly the edible ice.

  Edible granular ice machine throughout the hotel, bar, banquet hall, restaurants, fast food shops, convenience stores and other places need ice to cold drink , to satisfy every customer need granular ice. The granular ice is crystal clear, clean and sanitary; it is efficient, safety, energy saving and environmental protection, durable, so it’s your best choice of ice

Technical scheme:

NO.

Parameters

Technical data

1

Model

NB3T-R2W

2

Evaporating temp.

-10℃

3

Condenser temp

+40℃

4

Control system

PLC micro-computer control

5

Voltage

220V/3Phase/60Hz

6

Cube ice weight density

500~550kg/m3

7

Power consumption

80KW~85KW/ton

8

Measurement

Cube ice machine

Machine:1980mm x 1630mm x 1840mm

Cube ice

22mm x 22mm x 22mm  冰块尺寸

or 29mm x 29mm x 22mm

9

Noise

55dB

10

Refrigerant

R22

11

Evaporating temp.

-15℃

12

Condenser temp

+40℃

13

Input water temp.

28℃

14

Ambient temp.

40℃

15

Compressor

Model

Frascold

Brand name

Frascold

Amount

1

Type

S15- 51Y

Power

24.04KW

16

Total Power of cooling fan

0.92KW

17

Deceleration motor power

0.75KW

18



Cooling water pump power

2.2KW

19







Power of circulating water pump

0.75KW

20

Evaporator

Type

cube type

数量Quantity

12 pieces

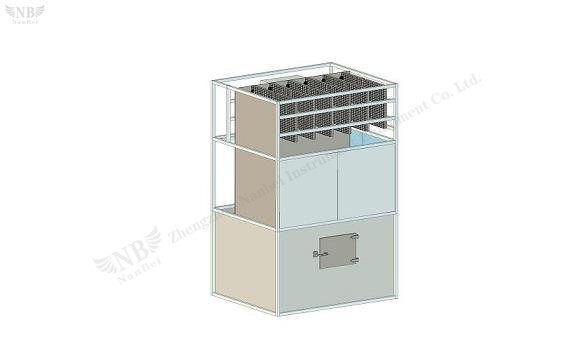

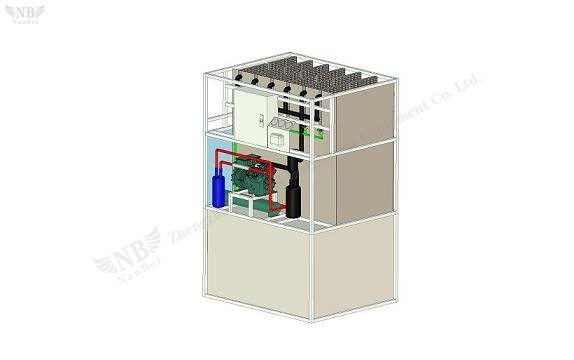

Granular ice machine 3D renderings
