Product Parameters
| FRD750-II-30
Dimension: 1202(H)*551(W)*750(D)mm 47″(H)*22″(W)*30″(D) Innner size (Paper drawer): 294(H)*388(W)*562(D)mm 12″(H)*15″(W)*22″(D) Packing size: 1351(H)*570(W)*800(D)mm 53″(H)*22″(W)*31″(D) N.W.: 306KG G.W.: 320KG |
FRD824-II-20

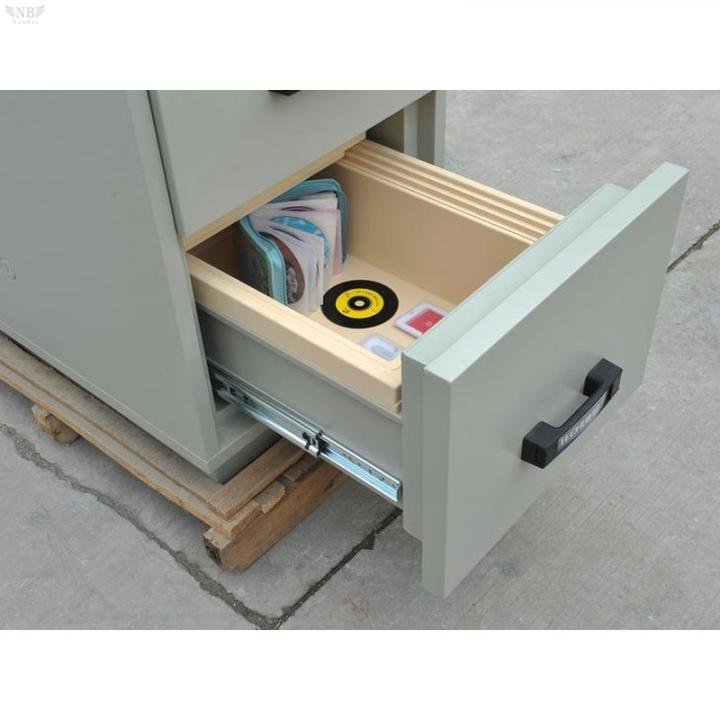

Dimension: 1231(H)*551(W)*824(D)mm 48″(H)*22″(W)*32″(D) Innner size (Paper drawer): 294(H)*388(W)*636(D)mm 12″(H)*15″(W)*25″(D) Innner size (D.P.B drawer): 150(H)*280(W)*520(D)mm 6″(H)*11″(W)*20″(D) Packing size: 1351(H)*570(W)*870(D)mm 53″(H)*22″(W)*34″(D) N.W.: 314KG G.W.: 330KG |
Locking:
Three options are offered:
Option 1: standard is one push-in key lock at top drawer giving control to all drawers.
Option 2: one push-in key lock on each drawer for individual control (extra charges for added push-in key locks).

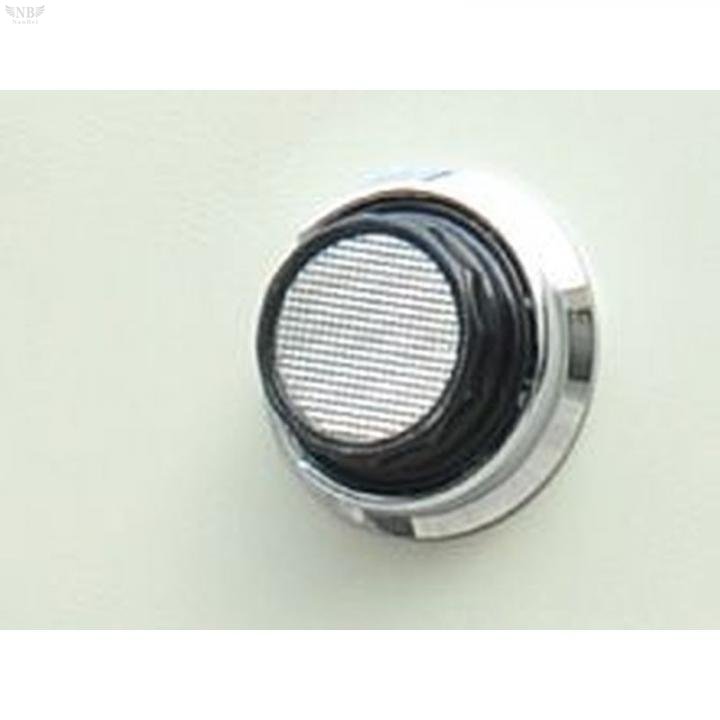

Option3: add one combination lock to the top drawer for anti-burglary function (extra charge for combination lock).
Color: standard is light grey RAL7032. Other colors could be accepted if the order is one 20 feet container at least.
Package: Each cabinet to be wrapped all over with PE airmat, protected with thick foam material sheet in the front and at the top of the cabinet and then covered a corrugated carton on the plywood pallet.
Standard is carton box package. Wooden crate package is available with extra charges.
