Product Parameters

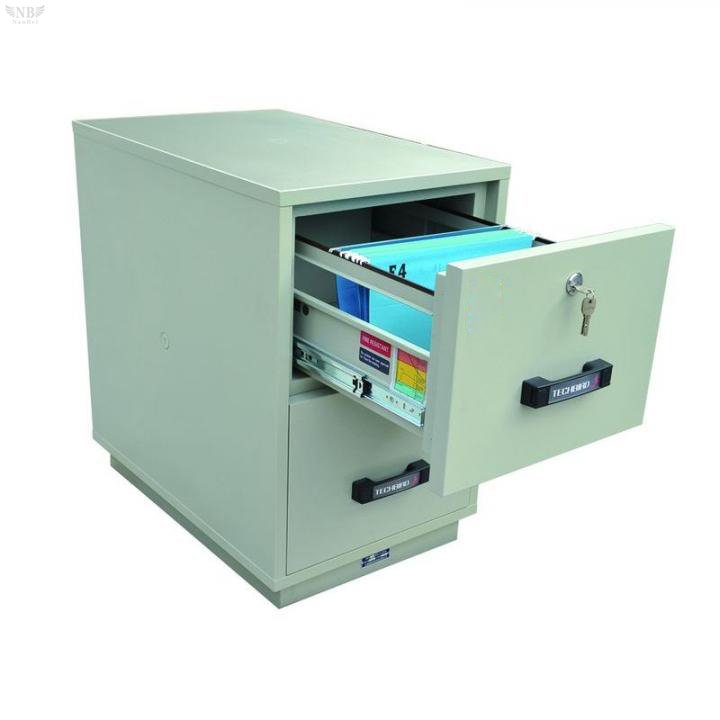

FRD-20
Dimension:
835(H)*551(W)*750(D)mm
33″(H)*22″(W)*30″(D)
Inner size (Paper drawer):
294(H)*388(W)*562(D)mm
12″(H)*15″(W)*22″(D)
Packing size:
984(H)*570(W)*800(D)mm
39″(H)*22″(W)*31″(D)
N.W.: 206KG G.W.: 221KG
Locking:
Three options are offered:
Option 1: one turn key lock at top drawer giving control to all drawers.
Option 2: one turn key lock on each drawer for individual control (extra charges for added turn key locks).
Option3: add one combination lock to the top drawer for anti-burglary function (extra charge for combination lock).
Color: standard is light grey RAL7032. Other colors could be accepted if the order is one 20 feet container at least.
Package: Each cabinet to be wrapped all over with PE airmat, protected with thick foam material sheet in the front and at the top of the cabinet and then covered a corrugated carton on the plywood pallet.
Standard is carton box package. Wooden crate package is available with extra charges.
