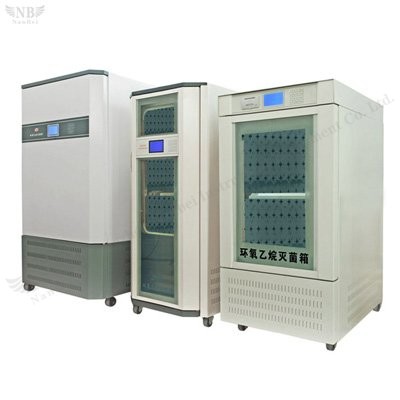

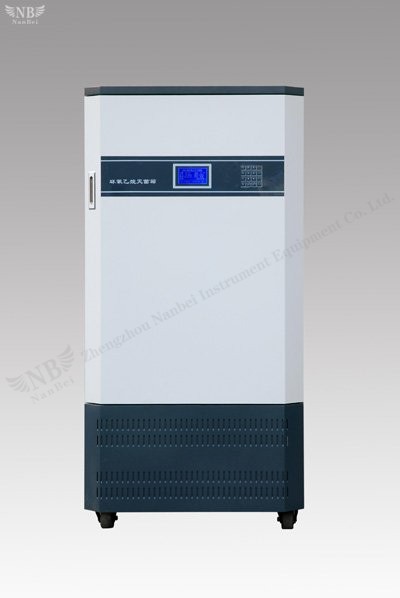

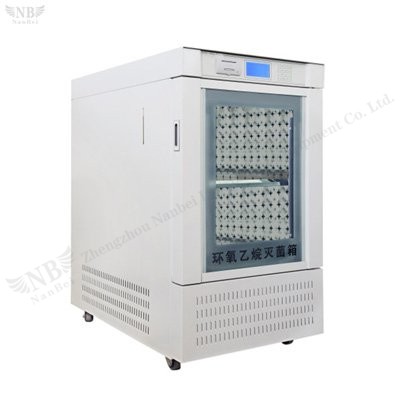

Ethylene oxide sterilizer
The scope of application of epoxy ethane sterilizer:
1. Medical supplies: operation instrument, syringe, infusion, catheters, birth control equipment.
2. Medical devices: endoscope, cardiac pacemaker, artificial heart, medical telephone, dialyzer, aspirator.
3.Health supplies: lady napkins, disposable tableware etc..
4. Medicine: Chinese medicine and Western medicine, cosmetics.
5. Textiles and biological products: cotton fiber, leather clothing, blankets, brush etc..
6. Instruments: electronic instrument, optical instrument, telephone etc..
7. Other: money, tickets, records, files, correspondence, collection of historical relics, silk satin products, animal specimens.
The products using epoxy ethane mixed gas, flame retardant, anti explosion, safety (temperature, pressure, leakage and other abnormal automatic alarm system for sterilized articles), no corrosion, no pollution to the environment damage.
Product structure:
1.Sterilizing chamber using 304 stainless steel mirror,anticorrosion.
2. A3 steel cabinet,durable.
3. Equipped with a thermal barrier layer
4. Double protective doors,insulation,sealing and leak prevention.
Product Features Configuration:
1.Sterilization process automatic computer control,LCD display panel
2. Sterilizing effect of doubling the anti-leak vacuum pumping system
3. Sterilization efficiency of automatic humidification system
4. Sterile water cycle automatic heating system efficiency
5. Air and water vapor auto exhaust purification of ethylene oxide residue analytical sound processing system.
6. Efficiency and prevent environmental pollution discharge residue heating air purification system
7. Sterilization automatic printing system the whole process (optional)
8. Temperature,pressure,leakage and other abnormalities of the automatic alarm system
9. After the accident off the job site automatic recovery system
Product specification:
Working equipment external ambient temperature:5-60C
The equipment sterilization room temperature:20-60C arbitrarily set.
Temperature accuracy:±1C
Vacuum pressure:-7~-70Kpa, arbitrarily set.
Sterilization time regulation range:1-9h, arbitrarily set.
Sterilization humidity:60%-80%, arbitrarily set.
The number of rows of residues: arbitrarily set.
Resolution time:arbitrarily set.
Clean: arbitrarily set
Voltage: 220v/50Hz
Data:
|
Model |
Room size(mm) |
External size(mm) |
Volume(L) |
Power(kw) |
|
YWM30 |
392*290*320 |
630*440*770 |
30 |
1.1 |
|
YWM60 |
520*320*400 |
780*480*1020 |
60 |
1.1 |
|
YWM65 |
570*320*400 |
830*480*1020 |
65 |
1.2 |
|
YWM150 |
732*420*558 |
900*575*1110 |
150 |
1.4 |
|
YWM200 |
708*450*670 |
880*650*1370 |
200 |
1.9 |
|
YWM240 |
510*300*1480 |
690*780*1690 |
240 |
1.9 |
|
YWM300 |
812*500*802 |
960*700*1500 |
300 |
2.1 |
|
YWM600 |
1030*630*930 |
1410*850*1700 |
600 |
2.6 |
|
YWM1000 |
1300*800*1000 |
1700*1020*2000 |
1000 |
3.1 |
