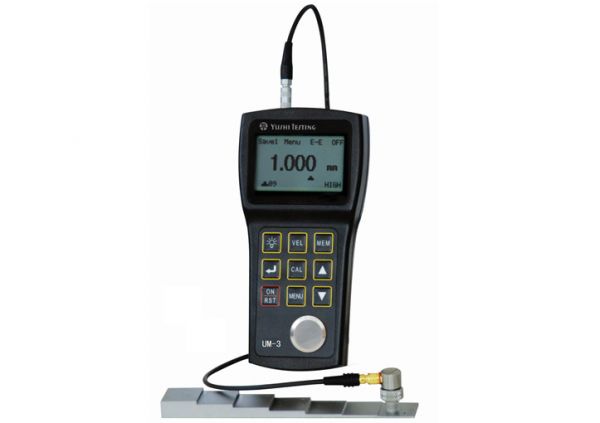

Specifications and Accessories of UM-3 ultrasonic thickness gauge
Operating principle:
I-E (interface-echo) mode with single-crystal delayed probe
E-E (echo-echo) mode with single-crystal delayed probe
Measuring range:
1.5mm to 20mm in I-E mode
0.3mm to 10mm in E-E mode
Depending on probe, material and surface condition
Resolution:
H＜10mm : 0.001mm/0.01mm/0.1mm
H≥10mm : 0.01mm/0.1mm
Units:
Selectable: inch or mm
Display:
128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)
Measurement update rate:
4 Hz
Material velocity range:
1000 to 9999 m/s
Power:
Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating time:
Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode
Auto shut-off:
After 5 minutes of non-use
Operating temperature:
-10℃ to +50℃(Specification to -20℃/-4℉ on request)
Size:
149mm×73mm×32mm (H×W×D)
Weight:
200g; 7oz (including batteries)
Data logger capacity:
Up to 500 readings can be divided into a maximum of 5 files (user-selectable)
Operating language:
English and Chinese
Application software:
UMVIEW
Interfaces:
Serial RS 232C port in combination with a communicative cable;
Standard package:
UM-3 thickness gauge
Standard probe (single-crystal delayed probe)
Carrying case
Two 1.5V AA alkaline batteries
Couplant
Operating manual
Certification of quality
Packaging list
Optional Accessories:
Attachable Rubber Sheath
Application software with Data transmission cable
