Product Introduction
DM30 Series
Black-White Densitometer
The DM3010 black and white densitometer has the use of computer tech quality products. It has a reading accuracy, good stability, appearance, convenient operation and a series of features. It can be widely used for non-destructive testing, printing, medical and other industries. Each instrument are random with density sheet used to verify the accuracy of the instrument.
Specification
|
Main Tech Data |
|
|
Density Range |
D=0.00—4.00 (DM3010) D=0.00—4.50 (DM3010A) D=0.00—5.00 (DM3011) |
|
Repeatability |
±0.01 |
|
Measuring Error |
0.00—2.00 0.02 2.00—4.50 0.05 4.50—5.00 0.08 |
|
Power |
50 ~ 60Hz, 220V ± 10% |
|
Power Dissipation |
25W |
|
Aperture Size |
Dia. 2mm |
|
Display Mode |
Three digital display |
|
Sampling Time |
0.8 s |
|
Communication Port |
RS232 Port |
|
Software |
DmCAL PC software |
|
Working Environment |
Temperature 0 ℃~40 ℃, Relative humidity≤85% |
|
Dimension |
260×265×110 （H×W×L） |
|
Weight |
2.1kg |

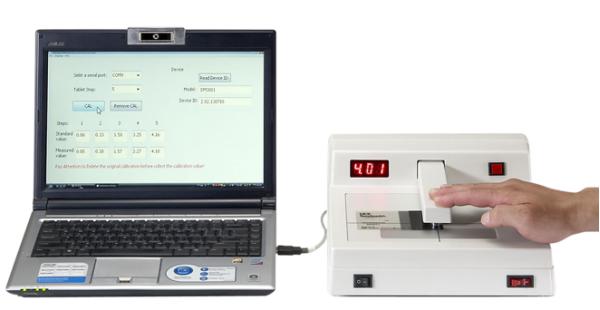

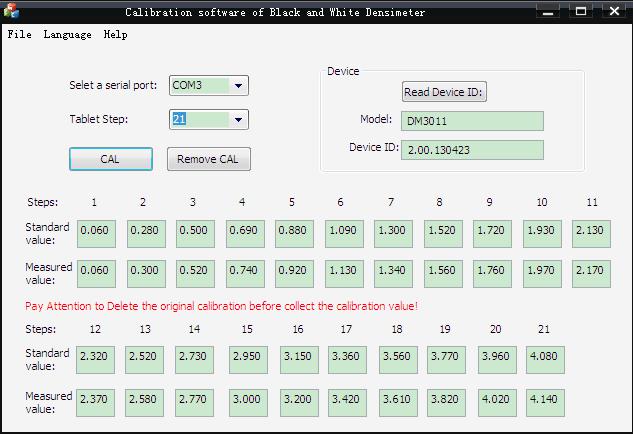

The Calibration Software Interface
|
Standard Configurations |
|
|
DM30 Series Black-White Densitometer |
Serial Port Cable |
|
Standard Step Density Tablet |
Software CD |
|
Power Line |
Quality Certification |
|
Packing Case |
Operating Manual, Packaging List |
