Function
Dial Torque Driver is use for cars, autobike, machine, electronic and so on.
It is use for the torque of parts, easy to handle, easy to use, can keep long time.
It is a necessary tool to test the torque of maintain and check equipment set.
Products dimension
Long: 270(mm) Wide: 98(mm) High: 100(mm)
Model
|
Model |
Capacity（N·m） |
Accurate（%） |
Long（mm） |
|
ANQ-0.6 |
0.1-0.6 |
5% |
270 |
|
ANQ-1.2 |
0.2-1.2 |
||
|
ANQ-3 |
0.25-3 |
||
|
ANQ-6 |
0.5-6 |
||
|
ANQ-9 |
0.75-9 |
||
|
ANQ-12 |
1-12 |

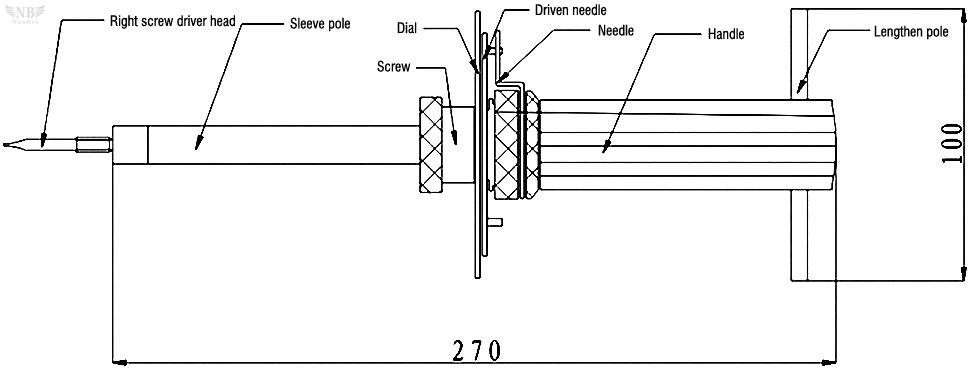

Schematic drawing
Use method
1. Before use, please zero to ensure the accuracy.
2. During use, this product must be keep vertical condition with the testing object; otherwise
will reduce the accuracy and the service life of torque meter.
3. After use, please zero, facilitates the later use.
4. When zero, loosens the locknut on the torque, turns the dial, causes the indicator at zero position,
and then tightens the locknut.
Attention
1:This products can’t use as tool
2:This products have been calibrate, not need to open the back cover, or loose the screw, it will make error. 3:Don’t put the products with ache, alkali and other causticity things together.
