Features
1:The machine stand base is large and stable, which is suitable for indoor testing on the desktop.
2:It is driven by the screw, and its gauge head displacement is accurate,
With the side hand wheel loading, and the simple and stable operation.
3:The mobile platform of the base owning the standard layout can realize left, right,
Forward and backward movement, with convenient and accurate clamping.
4:The machine stand can be installed in the table (desk) to use, having more solid machine frame.
5:It is equipped with digital gauge, which enables it to collect the stroke data collection whenever necessary（ASC-S）.
Specifications and Parameters
1:Length × width × height:260mm×360mm×500mm
2:Stroke:180mm
3:Rated load: 500N-1000N
4:weight:18kg-21kg

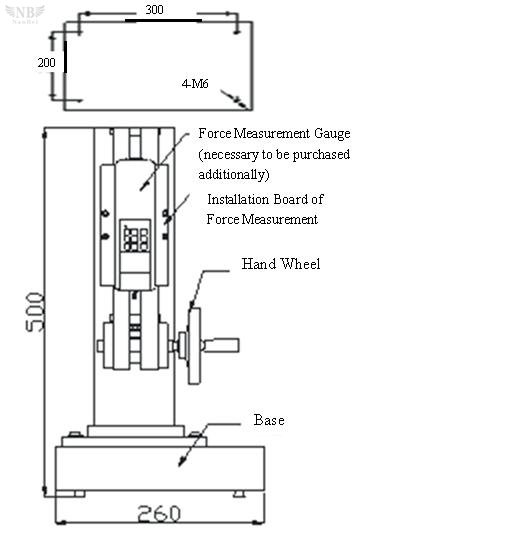

Diagram of Structure
