Details
LS-CWM Laser particle size analyzer is specially designed for measuring samples with broad size distribution, customized products are available.
Applications: Measure the particle size distribution of powders with broad size distribution, such as sea mud, coal water slurry, soil, etc.
Principle: Uses the principle of laser light scattering to determine particle size distribution。OMEC’s instruments own the advantages of wide measurement range, good repeatability
Parameters
Specifications:
1. Measuring Range: 0.5-1500μm
2. Sample Feeding: wet dispersion
3. Repeatability: <3%
4. Pump: 10m, max speed: 2800rpm (equipped with other type according to sample)
4. Measurement Duration: 2-3 minutes
5. Number of Detectors: 40
6. Light Source: He-Ne laser, 2.0 mW, 0.6328 μm
7. Environmental Requirement:
Temperature：5-35℃
Humidity：＜85%
Feature
Features:
1. High speed centrifugal pump ensures the suspension of coarse particles.
2. Multiple circulating sample feeding systems available.
3. Customized products available.
Function
Software Functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Easy switch among different types of reports.
3. Auto clear of Electric noise.
4. Sample parameters editing, selecting and saving function.
5. Chinese and English report.
6. Customer size grading function.
7. Multiple ways of selecting “measurement parameters”.
8. Multiple document formats.
9. Operating log and measuring log function.
10. Data input function.
11. Statistics of multiple documents.
12. Two distribution models ：Rosin-Ramler, multi-wave crest;
13. Two report models: General report, statistics;
14. Two accumulative directions: small to large, large to small;
15. Reports can be exported as Excel format or other text format files;
16. Report items can be set/selected according to customers’ requirements.
Patent
| The Application of Patents and Proprietary Technology | |
 |

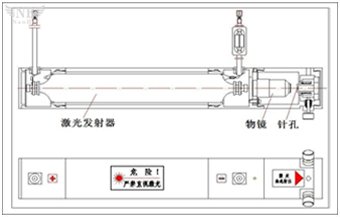

Integrated laser emitter The beam expander and the pinhole filter are integrated in several concentric tubes, and then jointed into one tube with both ends enclosed. It is shock proof, easy to maintain and with stable laser output. |
