BDS300 Series Inverted Microscope
Relief Phase Contrast

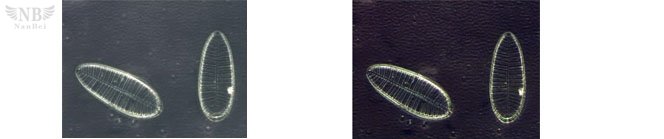

Ordinary Phase Contrast Observe Relief Phase Contrast Observe

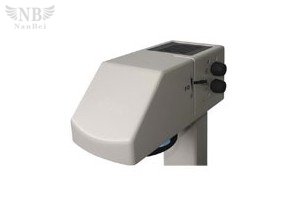

Relief Phase Contrast Unit makes 3D image for crystal living sample

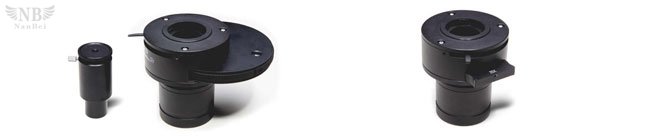

Turnable Relief Phase Contrast Condenser Slide Relief Phase Contrast Condenser
LWD Ojectives
Objectives Specification (mm)
|
|
Objective
|
N.A.
|
Working Distance
|
|
LWD Plan Objective
|
LPL 2.5×
|
0.07
|
29.7
|
|
LPL 4×
|
0.10
|
17.5
|
|
LPL10×
|
0.25
|
7.9
|
|
LPL25×
|
0.40
|
5.0
|
|
LPL40×
|
0.65
|
3.0
|
|
LWD Plan Phase
Contrast Objective
|
LPL Ph+ 10×
|
0.25
|
7.9
|
|
LPL Ph+ 25×
|
0.40
|
5.0
|
|
LPL Ph+ 40×
|
0.65
|
3.0
|

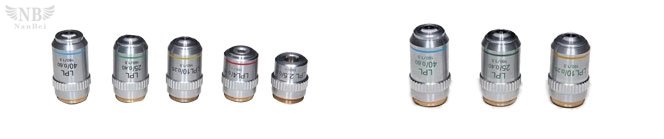

Bright Field Objectives Phase Contrast Objectives
Illumination System
Kohler Illumination System: 6V/30W Halogen
Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube)
Mechanical Stage and accessories:
Large Stage: 206 (X) X 170 (Y) mm

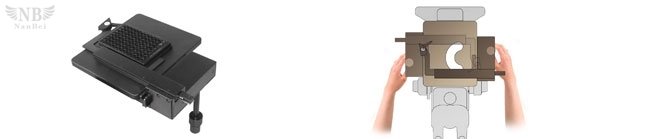

Mechanical stage available for 96 holes plate, moving range: 128（X）×80（Y）mm
Knob can be changed by left or right, convenient for all users
Stage with 96 holes plate Knob can be changed by left or right

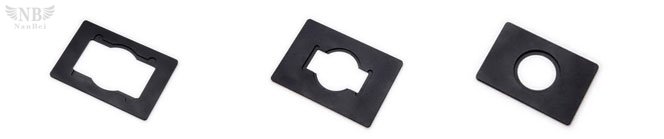

65mm Culture Dish Holder 54mm Culture Dish Holder 35mm Culture Dish Holder

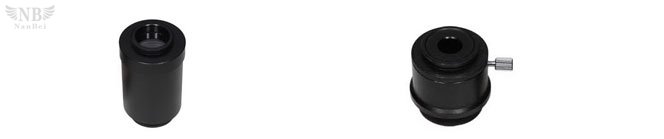

1X C-Mount 0.6X C-Mount (Focus Adjustable)
BDS 300 Series Inverted Micoscope Outfits
|
Item
|
BDS300
|
BDS300PH
|
|
Main Body
|
●
|
●
|
|
Eyepiece
|
WF10×／20mm
|
●●
|
●●
|
|
WF16×／13mm
|
○○
|
●●
|
|
10X Article Eyepiece (0.1mm)
|
○
|
●
|
|
Centering Eyepiece
|
●
|
●
|
|
LWD Plan
Objective
|
LPL 2.5×／0.07
|
W.D.=29.7mm
|
○
|
○
|
|
LPL 4×／0.10
|
W.D.=17.5mm
|
○
|
●
|
|
LPL10×／0.25
|
W.D.=7.9mm
|
●
|
○
|
|
LPL25×／0.40
|
W.D.=5.0mm
|
●
|
●
|
|
LPL40×／0.65
|
W.D.=3.0mm
|
●
|
●
|
|
LWD Plan
Phase Contrast Objective
|
LPL Ph+ 10×／0.25
|
W.D.=7.9mm
|
○
|
●
|
|
LPL Ph+ 25×／0.40
|
W.D.=5.0mm
|
●
|
●
|
|
LPL Ph+ 40×／0.65
|
W.D.=3.0mm
|
○
|
●
|
|
Annular Spot 10X
|
○
|
●
|
|
Annular Spot 25X
|
●
|
●
|
|
Annular Spot 40X
|
○
|
●
|
|
Slide Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm
|
●
|
|
|
Turnable Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm
|
|
●
|
|
Seidentopf Trinocular Head: Inclined 45°
Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube)
|
●
|
●
|
|
Mechnical stage available for 96 holes plate, moving range: 128（X）×80（Y）mm
Large Stage: 206 (X) X 170 (Y) mm
|
●
|
●
|
|
65mm Culture Dish Holder
|
●
|
●
|
|
54mm Culture Dish Holder
|
○
|
○
|
|
35mm Culture Dish Holder
|
●
|
●
|
|
Filter (Blue, Green, Gray)
|
●
|
●
|
|
1X C-mount
|
○
|
●
|
|
0.6X C-mount (focus adjustable)
|
○
|
○
|
|
12V/20W Halogen lamp
|
●
|
●
|
|
Micrometer (0.01mm)
|
○
|
○
|
Remark: “●”is for standard
“○” is for optional

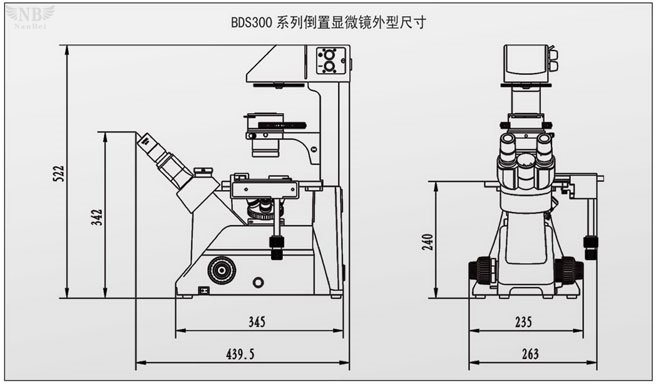

BDS300 Series Inverted Microscope Size（mm）:
