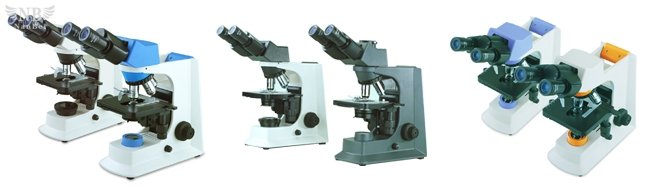

Smart Series Biological Microscope
SMART Polarizing Unit
SMART Series Biological Microscope Outfits
|
Items
|
Specification
|
SMART-1
|
SMART-2
|
SMART-3
|
| Eyepiece | WF 10X-18 mm |
●●
|
|
|
| WF 10X-20 mm |
|
●●
|
●●
|
|
| WF 16X-13 mm |
○○
|
○○
|
○○
|
|
| Reticule Eyepiece WF 10X-18mm (0.1mm) |
○
|
○
|
○
|
|
| Reticule Eyepiece WF 10X-20mm (0.1mm) |
○
|
○
|
○
|
|
|
Achromatic
Objective
|
4X |
●
|
|
|
| 10X |
●
|
|
|
|
| 40X(S) |
●
|
|
|
|
| 100X/1.25 (Oil) (S) |
●
|
|
|
|
| 20X |
○
|
|
|
|
| 60X (S) |
○
|
|
|
|
| Plan Objective | 4X |
|
●
|
|
| 10X |
|
●
|
|
|
| 40X/0.65 (S) |
|
●
|
|
|
| 100X/1.25 (Oil) (S) |
|
●
|
|
|
| 20X |
|
○
|
|
|
| 60X (S) |
|
○
|
|
|
|
Infinity E-Plan
Objectives
|
4X |
|
|
●
|
| 10X |
|
|
●
|
|
| 40X (S) |
|
|
●
|
|
| 100X (Oil) (S) |
|
|
●
|
|
| Plan 20X |
|
|
○
|
|
| Plan 60X (S) |
|
|
○
|
|
|
Seidentopf
Binocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm
|
●
|
●
|
●
|
|
Seidentopf
Trinocular Head
|
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm,
Light Distribution: 20:80
|
○
|
○
|
○
|
| Nosepiece | Quadplex |
●
|
●
|
●
|
| Mechanical Stage |
Stage Size: 145X140mm
Travel: 76mmX52mm, Scale: 0.1mm
Coaxial Coarse and Fine Focusing Knobs
Travel Range: 26mm, Scale: 2um
Two Slide Holder
|
●
|
●
|
●
|
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) |
●
|
●
|
●
|
| Illumination | 6V/20W Halogen Lamp |
●
|
●
|
●
|
| 6V/30W Halogen Lamp |
○
|
○
|
○
|
|
|
3W-LED Illumination Systems
(non-rechargeable)
|
○
|
○
|
○
|
|
| 0.3W-LED Illumination Systems(rechargeable) |
○
|
○
|
○
|
|
| Field Diaphragm |
○
|
○
|
○
|
|
| Dark Field Unit | N.A.0.9 (Dry) |
○
|
○
|
○
|
| Polarizing Attachment | Analyzer/Polarizer |
○
|
○
|
○
|
| Independent phase contrast unit | 10X /20X /40X /100X |
|
|
○
|
| Fluorescence unit |
Epi Fluorescence unit (three-hole slide)
(B,G, 100W mercury lamp )
|
○
|
○
|
○
|
| Filter | Blue |
●
|
●
|
●
|
| Green |
○
|
○
|
○
|
|
| Yellow |
○
|
○
|
○
|
|
| C-Mount | 0.47X（Focus adjustable） |
○
|
○
|
○
|
| 1X |
○
|
○
|
○
|
|
| Mirror |
○
|
○
|
○
|
|
| Wire winding device |
○
|
○
|
○ |
Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories
Packing Size: 420mm X 275mm X 450mm
Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
Packing Size: 420mm X 275mm X 450mm
Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
