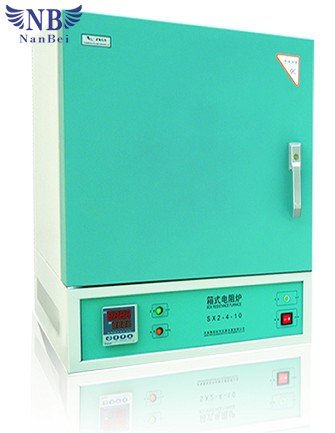

NB2-10T Box type electric resistance furnaces:
Features
1000℃electric furnaces are the most widely applied in the market. The furnace body adopts advanced and reasonable integral construction, and reduces complex dangerous installation processes of users. Multiple protective measures are available, including over-current and over-pressure protection, overheating protection of furnace casing, etc. Fuzzy PID control technology is adopted for the temperature controller, featuring high precision in temperature control, small thermal shock, reliable performance, simple and easy operation, etc. Domestic super quality ceramic fiber board and cotton is adopted for the heat insulation layer with excellent thermal insulation effects. Ceramic fiber, silicon carbide and high-aluminum hearths are available for this series of electric furnaces.
NB2-10G/T Series Technical Specifications：
| Model | NB2-2.5-10G
NB2-2.5-10T |
NB2-4-10G
NB2-4-10T |
NB2-8-10G
NB2-8-10T |
NB2-10-10G | NB2-12-10G | NB2-18-10G |
| Hearth dimensions(mm) | 200X120X80 | 300X200X120 | 400X250X160 | 300X200X300 | 500X300X200 | 500X500X800 |
| Furnace volume | 2L | 7.2L | 16L | 18L | 30L | 200L |
| Design temperature | 1000℃ | |||||
| Highest temperature | 950℃ | |||||
| Temperature control precision | ±1℃ | |||||
| Temperature control method | PID temperature controller | |||||
| Temperature rise rate | ≤15℃/min for T-series，≤50℃/min for T-series | |||||
| Input power | 2.5kw | 4kw | 8kw | 10kw | 12kw | 18kw |
| Source voltage | AC220V | AC220V | AC380V | AC380V | AC380V | AC380V |
| Heating elements | Fe-Cr alloy heating wire（0Cr25AL5） | |||||
| Sensor | K-type | |||||
| Dimensions(mm) | 480X400X570 | 590X520X620 | 730X570X720 | 550X770X550 | 770X880X560 | 900X1100X1200 |
