Product Introduction

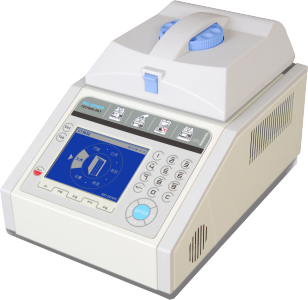

Thermal Cycler (PCR) / GeneTest
This series product adopts 6 pieces custom-made US Marlow peltier, cycle times ＞200000. Steady performance function, easy operation, economic.
1). The most advanced peltier-based semiconductor technology.
2). High-performance universal power supply.
3). Large 5.7-inch high-definition LCD display.
4). Bilingual curve graphical interface.
5). Power-down data protection.
6). Metal shell, solid, practical, beautiful and generous.
7). Stepless adjustable Lid can adapt to different heights in vitro.
8). Lid can be positioned at any angle.
9). High sealing reaction zone to ensure stable and reliable experiment.
|
Model
|
GT9611/9631/5421/3841
General
|
GT9612/9632/5422/3842
Gradient
|
|
Capacity
|
96×0.2ml , 96×0.2ml+77×0.5ml , 54×0.5ml , 384well
|
|
|
Temperature Range
|
0～99.9℃
|
|
|
Heating Rate
|
4℃/s
|
|
|
Cooling Rate
|
3℃/s
|
|
|
Uniformity
|
≤±0.3℃
|
|
|
Accuracy
|
≤±0.2℃
|
|
|
Display Resolution
|
0.1℃
|
|
|
Temperature Control
|
Block\Tube
|
|
|
Average Ramping Rate Adjustable
|
0.1～2.5℃
|
|
|
Gradient Uniformity
|
/
|
≤±0.3℃
|
|
Gradient Accuracy
|
/
|
≤±0.2℃
|
|
Gradient Temp. Range
|
/
|
30～99.9℃
|
|
Gradient Spread
|
/
|
1～30℃
|
|
Hot Lid Temperature
|
30～110℃
|
|
|
Hot Lid Height Adjustable
|
Stepless Adjustable
|
|
|
Number of Programs
|
200
|
|
|
Max. No. of Segment
|
9
|
|
|
Max. No. of Step
|
9
|
|
|
Max. No. of Cycle
|
99
|
|
|
Time Increment/Decrement
|
1 Sec ～ 9 Min 59 Sec
|
|
|
Temp. Increment/Decrement
|
0.1～9.9℃
|
|
|
Pause Function
|
Yes
|
|
|
Auto Data Protection
|
Yes
|
|
|
Graphical Display
|
Yes
|
|
|
Hold at 4℃
|
Forever
|
|
|
LCD
|
5.7inch，320×240 pels
|
|
|
Communication
|
USB2.0 , RS232
|
|
|
Dimensions
|
392mm×262mm×252mm (L×W×H)
|
|
|
Weight
|
10kg
|
|
|
Power Supply
|
85～264VAC , 50～60Hz , 600 W
|
|
