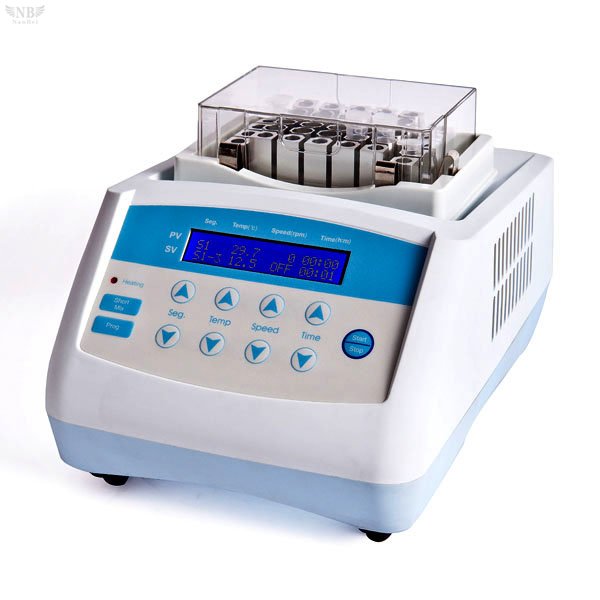

MTC-100 Thermo Shaker Incubator (cooling)

Brand:NANBEI

Model:MTC-100

Application:

Product Introduction

 Product features:

1. Perfect radius and excellent dimensional technology blend with adjustable mixing speed.

2. Programmable. Efficient shaking and temperature control.

3. Restore from power off, recover to the pre-status automatically. (deleted)

4. Microprocessor controlled incubator. Good linearity of temperature control. Precise control of the shaking speed.

5. Timing function. Time range is from 0 to 100hours.

6. Various blocks to exchange, convenient for replacement.

7. Built-in temperature calibration function and short mixing function.

8. DC brushless motor drive, long life and free of maintenance.

9. Multiple safety protection function. Conform to CE safety standards, safe and reliable.

Technical parameters

Model

MTC-100

Thermo Shaker Incubator (cooling)

MTH-100

Thermo Shaker Incubator (hearting)

Temperature ControlRange

0°C - 100°C

R.T.+5°C - 100°C

Block Temperature Uniformity

≤±0.3°C

Temperature Control Accuracy

±0.3°C

Display Accuracy

0.1°C

Heating Platform Temperature Accuracy

<0.5°C (detect @37°C)

Shaking Speed

300 - 1500 rpm

300 - 2000 rpm

Shaking Orbit

3mm (horizontal)

Timing Range

99h59min

Heating Time

<20min (from 20°C to 100°C)

Cooling Time

≤25min from R.T. to R.T.-20°C

(detected below 30°C)

/

Cooling Speed

7°C/min (from 100°C to 20°C)
1.2°C/min (from R.T. to R.T.-20°C)

/

Maximum Power

200W

Dimension ( LxWxH)

270x196x170 mm

Net Weight

8.3 KG

6.8 KG

Block Selection

Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”



3-in-1 model

Plate

(shaking and mixing)

tube holers

(shaking and mixing)

Blocks (shaking ,mixing ,incubator)

PCR plates

(skirted, semi-skirted, unskirted)

0.2 ml PCR tubes and PCR strips

Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”

384 well PCR plate

0.5 ml Micro-test tubes

96- and 384- deepwell plates

1.5 ml/2.0ml Micro-test tubes

MTPsenzyme labeled plate




Conventional configuration

MTC-100A / MTC-100B / MTC-100C / MTC-100D / MTC-100E

MTH-100A / MTH-100B / MTH-100C / MTH-100D / MTH-100E

E.g.: MTC-100C means select the type MTC-100 with Block type C.

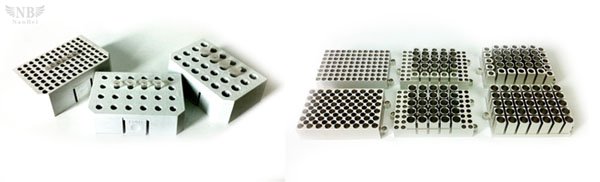

Exchangeable blocks for MTH-100/MTC-100 series




Type

Description

Max. Temperature

A

96 x 0.2ml PCR plate

100°C

B

54 x 0.5ml

100°C

C

35 x 1.5ml

100°C

D

35 x 2.0ml

100°C

E

20 x 0.5ml + 15 x 1.5ml

100°C

F

24 x dia. ≤ Φ12mm

100°C

G

32 x 0.2ml + 25 x 1.5ml

100°C

H

32 x 0.2ml + 10 x 0.5ml + 15 x 1.5ml

100°C

I

103 x 67 x 30 mm (water bath block)

100°C

J

96 x 0.2ml plate (flat bottom)

100°C

K

24 x 5ml (max. speed to 600rpm)

100°C

L

12 x 15ml (max. speed to 600rpm)

100°C

M

6 x 50ml (max. speed to 600rpm)

100°C

N

Customized

100°C

MIX-A

96 x 0.2ml tube stand

/

MIX-B

24 x 0.5ml tube stand

/

MIX-C

24 x 1.5/2.0ml tube stand

/
