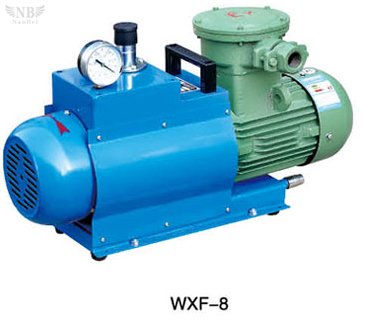

WXF-8 8L/s Anti-explosive oilless rotary vane vacuum pump

Brand:NANBEI

Model:WXF-8

Application:

Product Introduction

This series of explosive-proof oilless rotary vane vacuum pump is a clean vacuum pump which is designed and developed by ourselves. It can work without lubricating oil and have no pollution.Widely used in petroleum, chemicals, mine, medicine, oil house, service station, liquid gas station, gas flue, aerospace. It is an equipment to pump the inflammable and detonatable gas

Features:

  a. No oil vapor, the working environment and the processed products are always clean.

  b. Equipped with suction filter and exhaust muffle. Long service life, low noise, easy to fix.

  c. Be suitable for the inflammable and detonatable gas which have the IIA or IIB anti-explosion level and the temperature with T1 to T4

  d. Sign of anti-explosion is ExdIIT4

  e. Adopt the Isolation technology, very safe and reliable.

Technical parameters:

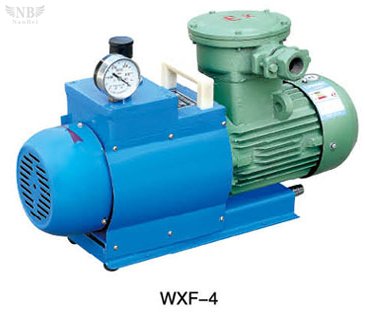

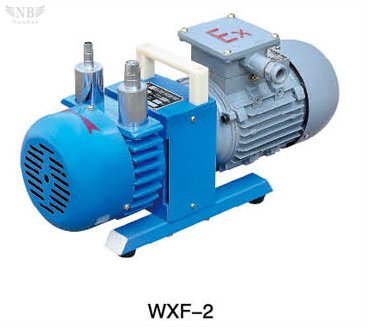

Model

WXF-1

WXF-2

WXF-4

WXF-8

Pumping speed(L/s)

1

2

4

8

Ultimate pressure(Mpa)

2*10-2

Rotary speed(r/min)

1400

Motor power(Kw)

0.25

0.37

0.55

1.1

Voltage(V)

380

Inlet diameter(mm)

Φ12

Φ12

Φ30

Φ30

Dimensions(mm)

320*160*240

440*160*240

600*260*340

650*260*340

Weight(Kg)

14

16

55

60

WXF-8 8L/s Anti-explosive oilless rotary vane vacuum pump Please inquiry,we will reply in 24h
