LGJ-30F top press

Brand:NANBEI

Model:LGJ-30F top press

Application:

Product Introduction

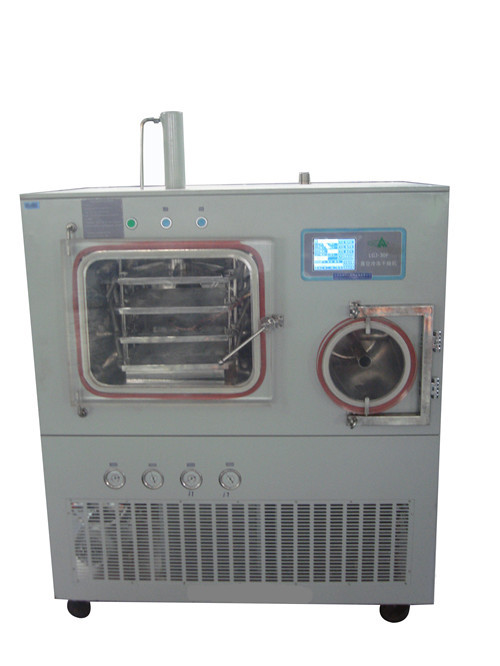

LGJ-30F Vacuum Freeze Dryer with stopper

LGJ-30F Freeze Dryer is suitable for pilot scale ,small scale production

This series is one of our patent products.This series of dryers have heating shelf,

freezing and drying process are finished in same place. It changes the traditional

complicated operation and prevents the product from pollution.

Main Features

With heating shelf and PID control standard, with programmable function

With organic glass observation window, whole process is easy to see

The shelf temperature accuracy is  1

Silicon oil fills hollow shelves, with most uniform shelf temp.,consistent and

    repeatable drying

Big touch screen LCD display drying curves

Interal surface of rectangular chamber and product tray are constructed of stainless steel

Air-let-in valve with nitrogen is available

Eutectic point test device is optional

PC software is optional to achieve remote control

Technical Parameter

Freeze drying area

0.306㎡

Condenser capacity

6 kg/24h

Condenser temperature

Min.-70

Vacuum degree

10 Pa

Shelf temperature

-50----+70

Shelf layers

3+1 layers; 70mm spacing

Shelf size

              300x340x20 mm

Bulk capacity

3L, 10mm thickness

Vial capacity Φ12mm

1950 pcs

Vial capacity Φ16mm

1080 pcs

Vial capacity Φ22mm

546 pcs

Electric defrosting

Available

Style of press

Hydraulic

Cooling

Air, draughty, ambient temperature≤25

Voltage

380V, 50Hz

Dimension

1280x900x1630 mm

Weight

400 kg

Power

4 KW

Remark: This product is for civilian use only



LGJ-30F top press Please inquiry,we will reply in 24h
