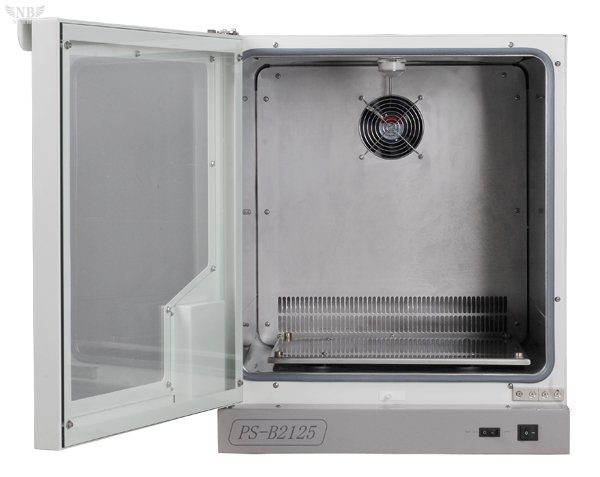

PS series Shaking incubator

Brand:NANBEI

Model:PS-A1125/PS-A2125/PS-B1125/PS-B2125/PS-B1225/PS-B2225

Application:

Product Introduction

 1. Drive mechanism Brushless DC motor, special drive design and three-shaft structure that is solid, stable and can keep a stable centripetal force are applied to make the test safe and stable.

2. Airduct structure  It applies circular airflow design concept and forced convection simulated air circulation principle to guarantee high even and stable inner bag temperature.

3. Air hole  It supplies oxygen to keep the oxygen inside the shaker evenly distributed.

4. Independently adjustable temperature safety device   Temperature safety device can be adjusted according to demand to protect the system in two ways, thus to increase the safety coefficient.

Application scope: Apply reciprocating or rotary method to culture, dissolve and mix samples.
Features:
◆ The shaker body is made with high quality cold rolling plate numerical control technology and is sprayed with customerized Dupont powder to make the appearance more beautiful.
◆ SUS304 stainless steel inner bag and special multi-layer sealing structure of inner chamber guarantee the consistency in constant temperature inside the shaker conducting rotation movement. The temperature control accuracy is higher.
◆ Brushless DC motor and special drive design provide the advantages of wide speed regulation range, constant moment and constant rotation speed etc. The brushless DC drive technology makes the product durable and free of maintenance.
◆ The sudden change of load can fully express the advantages of intelligent fuzzy PID control technology and brushless DC low speed constant torque technology. The material vessel will not be damaged and broken despite of the increase or decrease of load, or sudden change of speed.
◆ Self protection functions are provided for overheating of motor and abnormal operation of overloading. In addition, functions including power down memory and recovery after energization are available.
◆ The service life of product is greatly prolonged after the application of special flexible system design for repetition, eccentrically braced structure design for rotation, brushless motor and NSK bearing. The comprehensive performance is more perfect.

Product parameters:

Product name

shaking  incubator

Model

PS-A1125

PS-A2125

PS-B1125

PS-B2125

PS-B1225

PS-B2225

Control method

Fuzzy PID intelligent controller (LED)

Vibration method

Reciprocating

Rotary

Reciprocating

Rotary

Reciprocating

Rotary

Rotation speed (precision)

25r/min~300r/min (adjustable)--------300r/min±1r/min

Max. allowable load

10KG-25 rounds, 5KG-300 rounds (excluding the vibration workbench)

25KG-25 rounds, 15KG-300 rounds (excluding the vibration workbench)

Timing range (additional)

Automatic start, automatic stop, power down memory, recovery after energization, fixed temperature and speed control method, programmed temperature

and speed control method (0~999h)

Temperature precision

±0.1℃

Temperature control scope

RT+5℃~60℃

Temperature evenness

±1℃

Rocker size         (mm)

485*335

415*355

915*655

Inner dimension         (mm)



499*480*420(100L)

1000*840*740(621L)

Overall dimension          (mm)

522*404*140

652*609*547

1067*1043*930

Power supply capacity

220V 50/60HZ 30VA

220V 50/60HZ 350VA

220V 50/60HZ 950VA

The change of product appearance and parameter will not be notified additionally. Product appearance may deviate due to shooting and printing reasons.
Note: Product with special specifications can be designed and produced according to demand.
