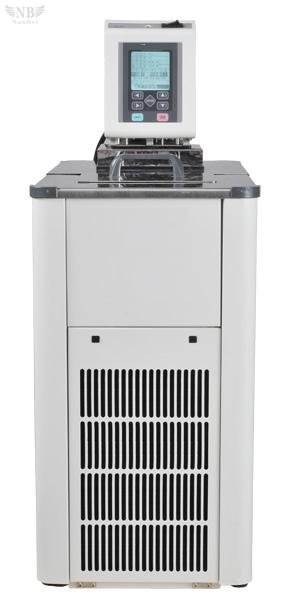

Low temperature circulator bath

Brand:NANBEI

Model:ILB series

Application:

Product Introduction

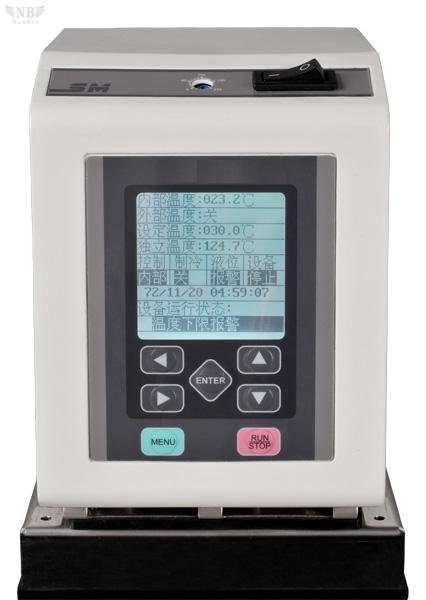

 1. Submerged controller  Apply fuzzy logistic PID control, high brightness LCD, which is able to display time, date and system information for facilitating the operation.

2. Easy for maintenance       It is easy to maintain and clean condenser to improve the refrigerating performance and save energy.

3. RS232 interface    It is a special interface for PC. One software CD (suitable for simplified Chinese WINDOWS2000 or simplified Chinese WINDOWS XP operating system) is attached. Test program is written, monitored and saved with special PC software. Test data is directly displayed and printed with special PC software.

4. Easy for discharge of fluid  The fluid can be discharged easily for the cleaning and maintenance of incubator.

5. Even temperature    Condenser coil is designed around for guaranteeing the even temperature inside the incubator.

6. Humanized handle    Professional human mechanical design is applied to improve the comfort.

Application scope: Widely applied for low temperature cooling and temperature control of hot parts of machines used for research, analysis and measuring equipment and industrial mechanical equipment in pharmaceutical, chemical, medical and scientific research fields.

Features:
◆The circulator applies high quality cold rolling plate sprayed with Dupont powder. The inner bag applies SUS304 stainless plate cut with laser. The surface is level and beautiful.
◆Main parts are imported from foreign countries (circulating pump, creepage protector control system, sensor...etc.). They have outstanding performance and high reliability.
◆ The combined use of refrigerator and heater makes the temperature range wider and temperature control more accurate. High precision temperature control can be conducted.
◆ Strong external circulation and cooling capacity; the pump power can be controlled electronically to guarantee the best heat exchange effect.
◆ An air filter screen is installed to the air intake at the bottom of control panel, which is used to effectively prevent the suction of ash and maintain the internal part clean.
◆ Apply fuzzy logistic PID control, high brightness LCD, which is able to display time, date and system information for facilitating the operation.
◆ Devices for electrical leakage protection, power down recovery, water level alarm, independent over temperature protection, upper limit and lower limit alarm of temperature etc. are provided to guarantee the safety of operation.

Product parameters:

Model

ILB-008-01

ILB-008-02

ILB-008-03

ILB-008-04

Mixing inside bath

Spouting mixing

Temperature control method

Fuzzy logistic PID control method

Temperature range

Negative 20℃~95℃

Temperature display accuracy

0.1℃

Temperature control accuracy

±0.1℃

Temperature control evenness

±0.2℃

Working room temperature

5℃~35℃

Max. flow rate

5L/min

Max. lift

1.5m

Overall dimension          (mm)·Weight

 W413*D705*H790 About 48KG

W413*D705*H790 About 45KG

W297*D590*H770 About 36KG

W297*D550*H750 About 32KG

Inner dimension         (mm)·volume

 W242*D452*H213 About 23.3L

W187*D392*H213 About 15.6L

W152*D302*H193 About 8.8L

W152*D262*H153 About 6L

 External circulating water gap

Tubing with outside diameter being 18mm

Tubing with outside diameter being 11mm

Heating power

2000W

2000W

2000W

2000W

Refrigerating power· refrigerant

830W·R22

725W·R22

600W·R22

425W·R134a

Power voltage

AC-220V 50/60HZ

■Performance parameter test under empty load: Ambient temperature of 20℃, ambient humidity of 50%RH.
■The change of product appearance and parameter will not be notified additionally. Product appearance may deviate due to shooting and printing reasons.
※Note: The product can be customerized according to the temperature control scope.
