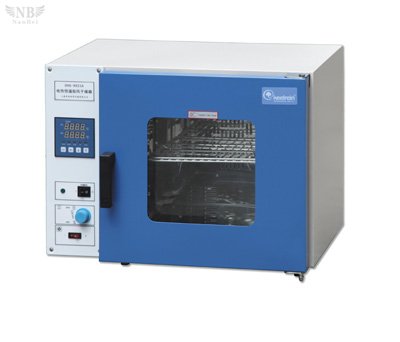

NB-9203A Electric blast drying oven

Brand:NANBEI

Model:NB-9203A

Application:

Product Introduction

           Electro-thermal Constant-temperature dry oven

Use outlined:

The scope of application: The equipment is widely used by biochemistry, chemical pharmaceutical, medical and health, agricultural research, environmental protection and other areas of research and application. As a glass of dry samples and thermal hardening thermal denaturizing experiments, to exclude the residual water samples, micro-organisms using the dry-heat sterilization of glassware, the warm-up before hte heating experiment, heating the food and chemical herding or softening of the experiment, exclude moisture, the extension of food in the harsh conditions of the preservation of time and building materials, electronic components, such as drying and heat drying experiment, banging, disinfection, sterilization and the uses of test material

Working principle:

The device is the use of high-temperature dry heat is drying to meet the needs of micro-organisms can produce oxidation protein denaturizing, such as electrolyte concentration in a certain period of time to kill residual microorganisms.

Features:

1. Automatic cut-off, time is running, calls the restoration, parameter memory , password-protected parameters, the temperature display correction.

2. High heat sensor and in response to environmental scanning micro-processing chips, constitute a high-precision, high temperature characteristics of intelligent.

3. All-round three-dimensional heat, fan forced circulation, high-precision temperature regulation, to ensure that the work of the indoor temperature has a good homogeneity.

4. Built-in temperature calibration, and can regulate the temperature of the small error

5. Temperature deviation  from the set temperature, the alarm automatically.

6. Out of control with auto power-off protection heater.

7. With memory function parameters can be set to avoid cumbersome.

8. Led display setting temperature, measured temperature, regular time clearly, each parameter display can be facultative switch.

9. Set the time from 1 to 9999 minutes to any set working hours. From time to time when the end of the window set to close.

10. Stand-off to prevent, and stand-alone over -temperature protection, and sensor fault alarm, over-temperature alarm limit

11. Duct design and reasonable structure, light air circulation design.

12. Mirror stainless steel liner, tempered glass window.

13.Has a modular design of the ceiling temperature tracking, when allowed to deviate from the  measured temperature rang the sound the equipment(optical) alarm and automatically cut off the heating.

Parameters:

Model

NB-9000 series

NB-9030A

NB-9030AD

9030(101-0)

NB-9070A

NB-9070AD

9070(101-1)

NB-9140A

NB-9140AD

9140(101-2)

NB-9240A

NB-9240AD

9240(101-3)

Voltage

220v 50HZ

Temp. range

RT+10-250℃

Temp. resolution

0.1℃

Constant volatility

±1℃

Power

870w

1570w

2070w

2470w

Working temp.

5-40℃

Inner dimension(mm)

340*325*325

450*400*450

550*450*550

600*550*750

Size(mm)

625*510*490

740*580*630

830*650*730

880*770*930

Shelves

2pcs

Timing

1-9999 minutes

Model

NB-9003 series

NB-9023A

NB-9023AD

NB-9053A

NB-9053AD

NB-9123A

NB-9123AD

NB-9203A

NB-9203AD

Voltage

220v 50HZ

Temp. range

RT+10-250℃

Temp. resolution

0.1℃

Constant volatility

±1℃

Power

870w

1120w

2070w

2470w

Working temp.

5-40℃

Inner dimension(mm)

340*325*300

420*400*345

550*450*550

600*600*650

Size(mm)

620*540*490

720*580*530

830*650*730

880*770*825

Shelves

2 pcs

Timing

1-9999minutes

Model

NB-9005 series

NB-9035A

NB-9035AD

NB-9055A

NB-9055AD

NB-9075A

NB-9075AD

NB-9145A

NB-9145AD

NB-9245A

NB-9245AD

Voltage

220v 50HZ

Temp. range

RT+10-300℃

Temp. resolution

0.1℃

Constant volatility

±1℃

Power

970w

1220w

1670w

2170w

2870w

Working temp.

5-10℃

Inner dimension(mm)

340*325*325

420*400*345

450*400*450

550*450*550

600*550*750

Size(mm)

625*510*490

720*580*530

740*580*630

830*650*730

800*770*930

Shelves

2 pcs

Timing

1-9999 minutes

Options:

1 intelligent LCD temperature controller (thirty)

2 intelligent temperature controller program (section thirty)

3 independent temperature limit controller

4 liquid crystal independent temperature limit controller

5 The printer

6.RS485 interface and communication software
