HRSS-150 ON-LINE AUTOMATIC ROCKWELL HARDNESS TESTER

Brand:NANBEI

Model:HRSS-150

Application:

Product Introduction

 Product Details:

MODEL HRSS-150 ON-LINE AUTOMATICROCKWELL HARDNESS TESTER



Feature & Use

Precise positioning device for workpiece which can realize the accurate positioning of test point.

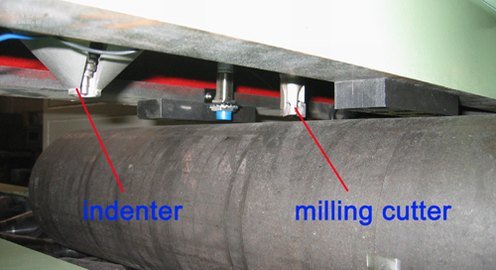

It can finish the process of clamping, milling, loading, unloading and hardness measuring of workpiece automatically.

Full automatic test force closed loop control system, test force is stable and reliable.

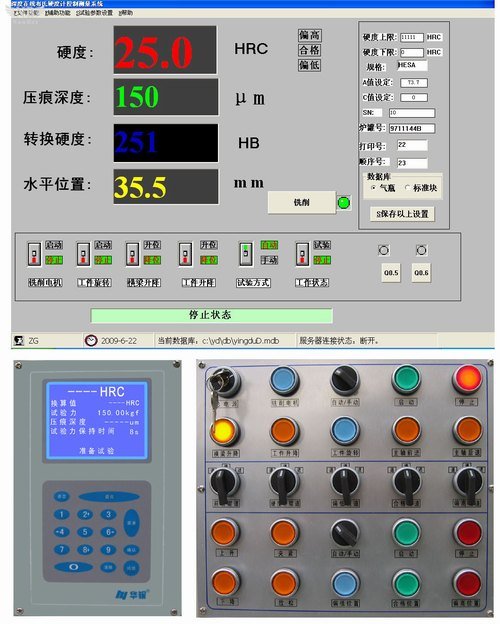

Automatic hardness display, no need for human operation.

The milling depth is uniform.

The upper and lower limits of hardness are preset in software. It can differentiate whether the test point is eligible or not. It also has the function of alarm in sound and light.

The testing conditions can be preset (including testing material type, workpiece name, date, operator name, etc.).

Test data can be saved in database for query at anytime.

There are many sensors built in whole on-line testing process which can finish the movement of workpiece and hardness testing automatically, no need for human operation.

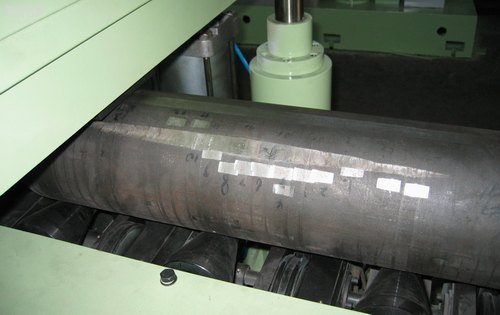

  This equipment is mainly used to determine the Rockwell hardness of parts like steel pipe, pressure vessel and drill pipe, etc., may determine the Rockwell hardness of other cylinder type and plane type parts also.



Specifications

Test force: 588.4, 980.7, 1471N(60, 100, 150kgf)

Max. diameter of test piece: 450mm(adjustable according to actual condition)

Measuring scale: HRA / HRB / HRC

Test force loading and unloading type: Electric loading and unloading automatic

Hardness indicating type: Four digits shown on PC

Record type: Communication protocol and database

Online single point testing cycle: 60 -90 seconds

Language: Chinese/English

Power supply: 380V AC, three phases/220V AC, single phase, 50Hz

Dimensions (for reference only): Main machine --- 1800 x 1500 x 2000mm

                             Weak current cabinet --- 780 x 400 x 1700mm

                             Heavy current cabinet --- 780 x 500 x 1700mm

                             Hydraulic station --- 1000 x 800 x 1200mm

Weight: Approx. 3500kg

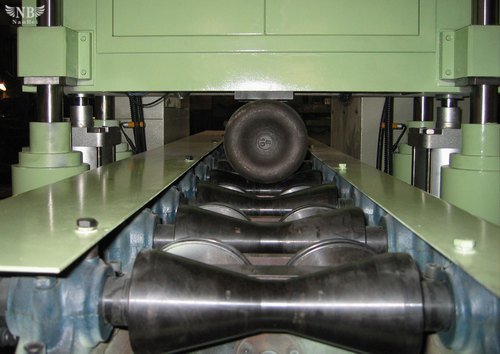

According to customer's request, we can also supply this machine with Large-flat test bench (as same as the one of HBM-3000B) instead of carrying wheel as the following picture. In this case, it will not be an on-line machine.
