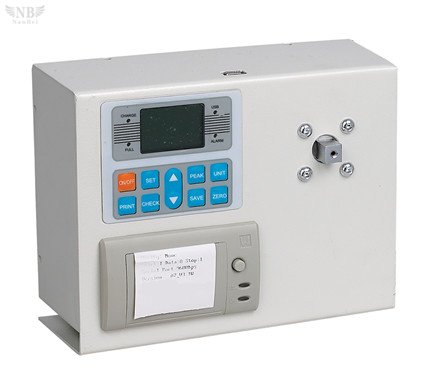

ANL-1-20P Digital Torque Meter

Brand:NANBEI

Model:ANL-1-20P

Application:

Product Introduction

 Function

The ANL digital torque meter is specially designed for measuring all kinds of torque.

It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.

This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench,

tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture,

the automobile light industry and the specialized scientific research and industry.

Character

1:High accuracy, high resolution, and stability. The sampling speed can be set.
2:Fluctuate limiting value set, has the acousto-optic alarm device.
3:Lattice type LCD, the back light can be set.
4:Torque directions identify.
5:Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6:Many kinds of front values maintain.
7:Power source shows and low power prompt.
8:No-operation close automatically, can set the close time.
9:Saves and prints 100 test data, can clean out at will.
10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data:

  such as prints, statistics and so on.

Specifications



Type

Index

With printer

ANL-1P

ANL-2P

ANL-3P

ANL-5P

ANL-10P

ANL-20P

No printer

ANL-1

ANL-2

ANL-3

ANL-5

ANL-10

ANL-20

Measuring range / Division value

N·m

1.0000/0.0001

2.0000/0.0001

3.0000/

0.0001

5.0000/

0.0001

10.000/

0.001

20.000/

0.001

Kg·cm

10.210/

0.001

20.421/

0.001

30.631/

0.001

51.052/

0.001

102.10/

0.01

204.21/

0.01

Lb·in

8.862/

0.001

17.724/

0.001

26.586/

0.001

44.311/

0.001

88.62/

0.01

177.24/

0.01

Precision

±0.5%

Peak Value Sampling Frequency

2000HZ

Power

8.4V  1.2VX7  Ni-MH Battery group

Charging Time

4~6 Hours

Continuous using time of battery

About 10 Hours

Battery life

≥300 times

Size

With printer:230mm×95mm×180mm

No printer:230mm×70mm×125mm

Net Weight

With printer:4KG     No printer:2KG

Power adapter

Input:AC 110-220V 50HZ   Output:DC 10V 300mA
