ALE Hydraulic Model Test Sand

Brand:NANBEI

Model:ALE

Application:

Product Introduction

 Function

ALE Hydraulic model test stand is designed for HF series push pull force gauge operation, manual operation.

Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with

different fixtures in various combinations of different purposes compressive load test.

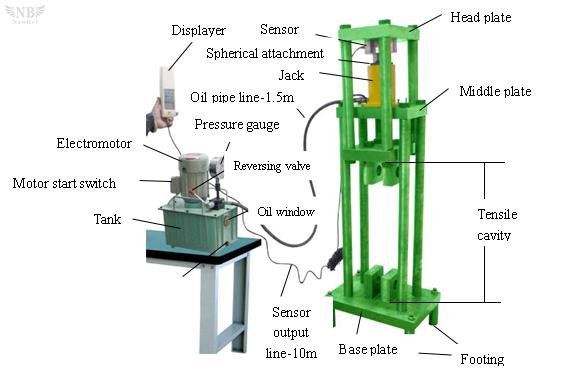

Structure schematic



Max. load

5k

5T

10T

20T

50T

Compress chamber

150mm

240mm

280mm

245mm

290mm

Stretching chamber

185mm

120mm

130mm

165mm

150mm

Effective stroke

90mm

125mm

125mm

145mm

160mm

Dimensions

190×140×880mm

225×180×1000mm

300×300×1185mm

300×300×1220mm

350×350×1410mm

Net weight

30kg

41.6kg

90.3kg

98kg

194kg
