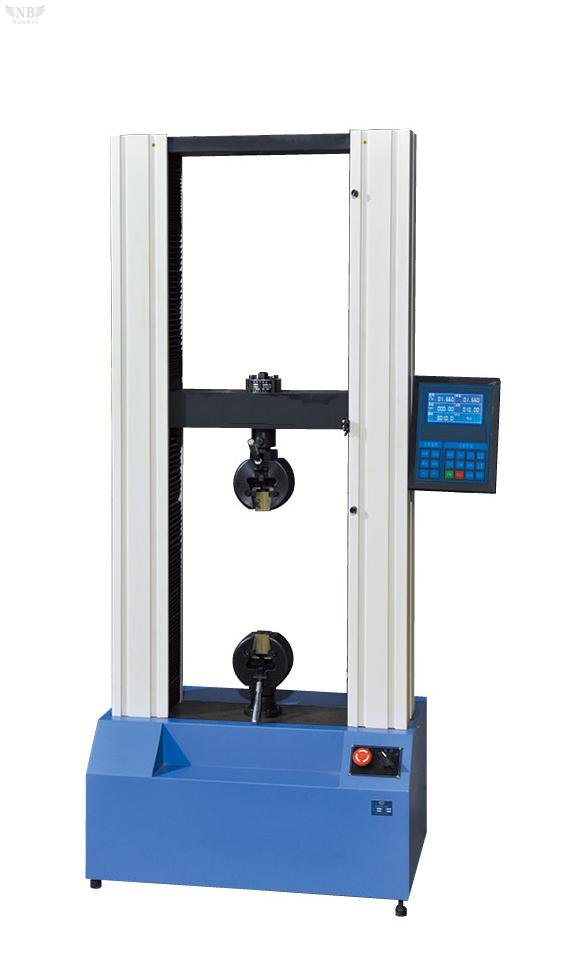

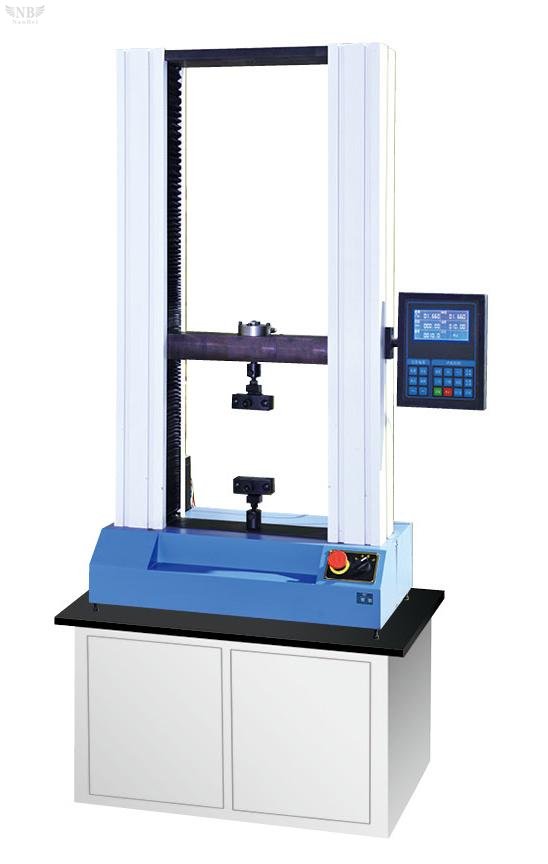

LDW Digital Display Electronic Tensile Testing Machine

Brand:NANBEI

Model:

Application:

Product Introduction

 1.      Applications and Features:

LDW Series Electronic tensile testing machine applies singlechip to measure and control parameters. Use mechanical loading and synchronous belt transmission, electron measurement, digital display, and the test speed can continuously change. The machine could display test force and displacement at the same time and has the function of holding the peak test force and displacement data. This machine is widely applying in mechanical property test such as rubber, plastic, wire and cable, textiles, waterproof materials, non-woven fabrics and other non-metallic materials and metal wire, metal foil, sheet metal and metal bar. The machine can do components and parts mechanical test, add accessories also can do compressed and bending test.

2.      Main technical parameters:


Model
LDW Electronic Tensile Testing machine (single column)
Max. testing force
0.1kN--5 kN
0.1kN--20 kN
5kN、10kN、20kN、50kN
100kN
200kN
300kN
Test force range (kN)
2%~100%
Measurement accuracy
±1%
Valid test width
--
340mm
380mm
400mm
550mm

Effective tensile space
650mm
650mm
650mm
600mm
Speed range
(mm/min)
0.1~500
0.1~300
0.1~200
0.1~100
0.2~300
Speed Accuracy
±1%
Displacement measurement
Resolution ratio 0.1mm
External dimensions
400×300×1200mm
620×370×1250mm
700×410×1680mm
760×480×1780mm
1000×570×2200mm
Power
0.5kw
0.8kw
1.2kw
1.5kw
2kw
3kw
Voltage
220V (Can configured with national standard voltage)
Weight
80kg
120kg
300kg
500kg
1200kg
1300kg

3. Functions

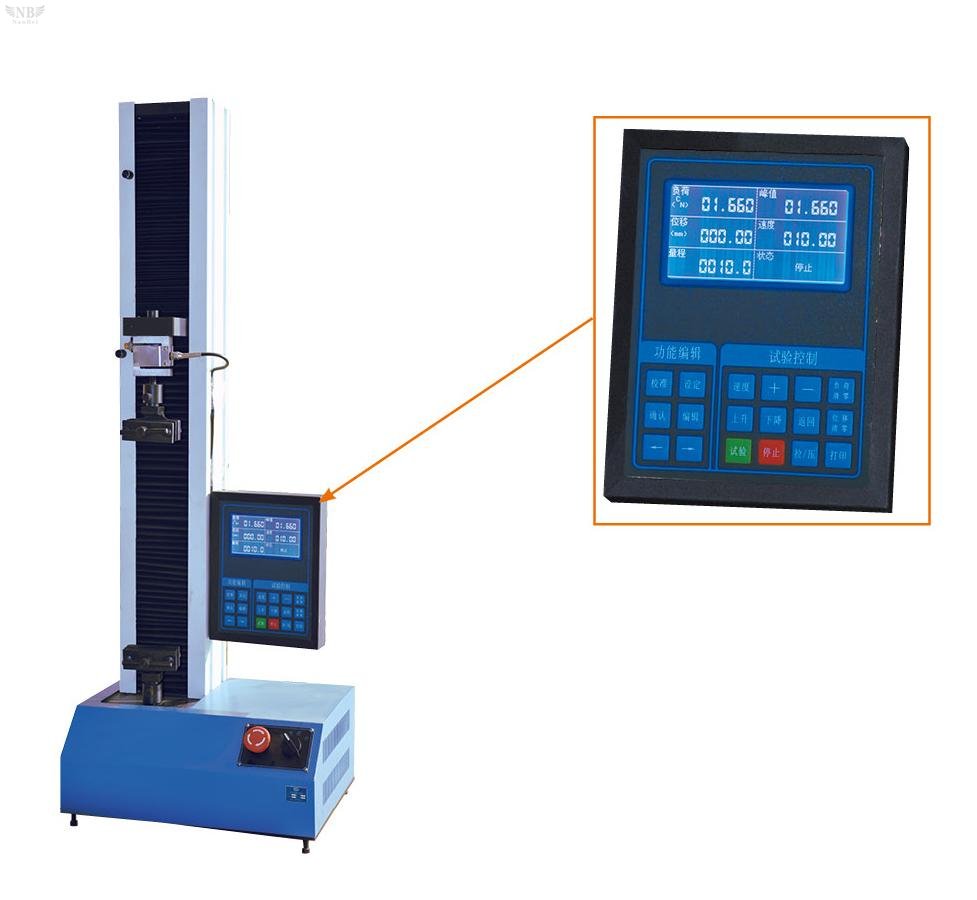

(1) Test result display: LCD digital display. Trial speed, displacement and peak value simultaneous display.
(2) Operating mode: button operation.
(3) Safety protection: Equipped with oil cylinder protection system, overload autostop system, overcurrent outostop system and emergency switch protect function.
