Smart Series Biological Microscope SMART-3

Brand:NANBEI

Model:SMART-3

Application:

Product Introduction

    点击进入图片链接

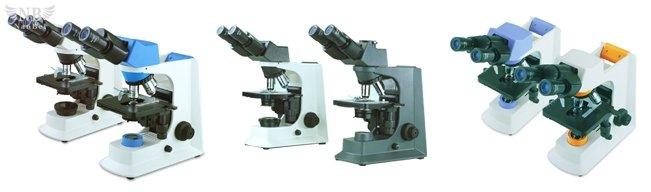

Smart Series Biological Microscope


SMART Polarizing Unit

SMART Series Biological Microscope Outfits
Items Specification SMART-1 SMART-2 SMART-3
Eyepiece WF 10X-18 mm ●●
WF 10X-20 mm   ●● ●●
WF 16X-13 mm ○○ ○○ ○○
Reticule Eyepiece WF 10X-18mm (0.1mm)
Reticule Eyepiece WF 10X-20mm (0.1mm)
Achromatic
Objective
4X
10X
40X(S)
100X/1.25 (Oil) (S)
20X
60X (S)
Plan Objective 4X
10X
40X/0.65 (S)
100X/1.25 (Oil) (S)
20X
60X (S)
Infinity E-Plan
Objectives
4X
10X
40X (S)
100X (Oil) (S)
Plan 20X
Plan 60X (S)
Seidentopf
Binocular Head
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm
Seidentopf
Trinocular Head
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm,
Light Distribution: 20:80
Nosepiece Quadplex
Mechanical Stage
Stage Size: 145X140mm
Travel: 76mmX52mm, Scale: 0.1mm
Coaxial Coarse and Fine Focusing Knobs
Travel Range: 26mm, Scale: 2um
Two Slide Holder
Condenser Abbe N.A. 1.25(Iris Diaphragm)
Illumination 6V/20W Halogen Lamp
6V/30W Halogen Lamp
3W-LED Illumination Systems
(non-rechargeable)
0.3W-LED Illumination Systems(rechargeable)
Field Diaphragm
Dark Field Unit N.A.0.9 (Dry)
Polarizing Attachment Analyzer/Polarizer
Independent phase contrast unit 10X /20X /40X /100X
Fluorescence unit
Epi Fluorescence unit (three-hole slide)
(B,G, 100W mercury lamp )
Filter Blue
Green
Yellow
C-Mount 0.47X(Focus adjustable)
1X
Mirror
Wire winding device

Note:  “●”In Table Is Standard Attachment. “○” Is Optional Accessories
Packing Size:  420mm X 275mm X 450mm
Gross Weight:  7.5 kgs            Net Weight: 6.5 kgs
