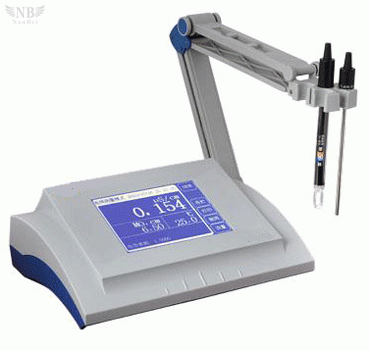

DDSJ-318 Conductivity Meters

Brand:NANBEI

Model:DDSJ-318

Application:

Product Introduction

 Functions:

1.It can measure conductivity, resistivity. (TDS)total dissolved solids, salinity and temperature of the current solution.

2.It applies microprocessor-based technology and functions as automatic temperature compensation, auto-calibration, auto measuring range switch.

3.The user can calibrate thesensor constant or TDS conversion coefficient. Also, the instrument supports two-point calibration.

4. 5-7 inch large touch screen, friendly interface and easy use

5.It follows GLP practice

6.The stored data can be displayed by graphics and can be viewed, printed and deleted.

7.It allows the user to review current measuring date and the last calibration data.

8.It contains 3 kinds of measuring modes: Continuous measurement, timing measurement and balance measurement which can meet different measuring requirements.

9.It has RS-232 and USB ports. If matched with data collecting software, it can be communicated with PC.

Specifications:

1.Measuring range

Conductivity: 0.055μS/cm~199.9mS/cm;

Resistivity: 5.00Ω.cm~18.25 MΩ.cm;

TDS:0.000 mg/L~100g/L;

Salinity: (0.00~8.00)%;

Temperature: (-5.0~135.0)℃

2.Resolution

Conductivity: 0.001μS/cm、0.1mS/cm

Resistivity: 0.1Ω.cm

TDS:0.001 mg/L

Salinity: 0.01%;

Temperature: 0.1℃

3.Accuracy:

Conductivity: ±0.5%FS

Resistivity: ±0.5%FS

TDS:±0.5%FS

Salinity: ±0.1%

Temperature: ±0.3℃±1 bit

4.Temperature compensation range: Manual/Automatic (-5.0~135.0)℃

5.Dimension(mm):250×195×100

6.Weight: 2 kg

7.Case outside serial No: WXS-A009-1

Package Size: 370X310X340mm

Gross Weight: 4kg
