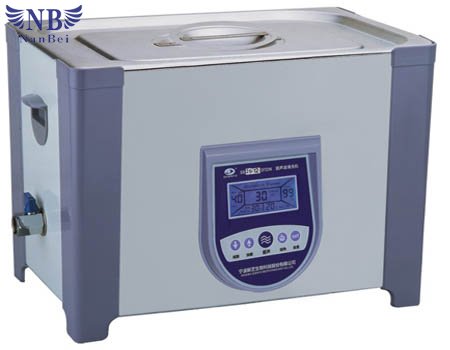

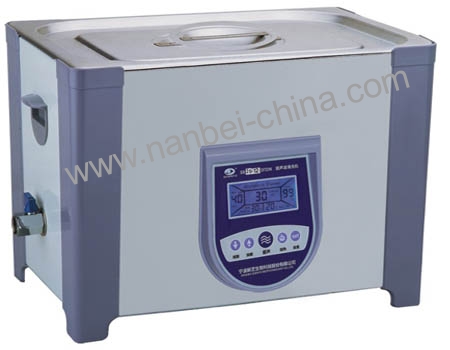

NB25-12DTDN Ultrasonic Cleaning Machine

Brand:NANBEI

Model:

Application:

Product Introduction

NB25-12DTDN Ultrasonic Cleaning Machine:

Ultrasonic Cleaning Machine is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves. It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container. Being fast in cleaning, efficiency, undamageable on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, valve, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor, fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc., including laboratories, and other various industries cleaning. There are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency (59K, low noise and suitable for precision cleaning), swept-frequency for users to choose from.

On the basis of the international standards IEC60886.61102.61161, the company manufactures series of intelligently automatic ultrasonic cleaning machines and airing cleaning machines, including the following types (desktop type, input type, split, single-slot, dual-slot, multi-slot) All major and key parts are imported, thus making the circuit more excellent, work more reliable, efficiency greater, noise much lower and cleaning more effective.

Feature:

  ● Large-screen LCD display

  ●Display the parameters setting menu

  ● Adjustable power: 40 %--100 %

  ● Digital setting ultrasonic cleaning time

  ● Working time countdown display

  ● Display actual temperature of the cleaning tank

  ● Temperature setting Range: room temperature--80 ℃

  ● Timing Range: 1-600 minutes adjustable

  ● Equipped with a special stainless steel basket, reduce sound cover

  ● The shell and cover are made by stainless steel

  ● The equipment controlled by Single-chip controller

 ● The lastest working parameters can be stored in memory after power-off

Parameters:

Model Inner Tank Volume Frequency power Heating power acumulative time

Drainage

L/W/H        (mm) L KHZ W W min
NB-120DTDP 240×140×100 3 40 120 150 99999 /

NB-3200DTDN

300×155×150 6 40 180 150 99999 /
NB-5200DTDN 300×240×150 10 40 200 800 99999
NB-5200DTDN 300×240×150 10 40 250 800 99999
NB-5200DTDN 300×240×150 10 40 300 800 99999
NB-4200DTDN 300×240×200 14.4 40 400 800 99999
NB25-12DTDN 500×300×150 22.5 40 500 1000 99999
NB25-12DTDN 500×300×150 22.5 40 600 1000 99999
NB-3200DTD 300×155×150 6 40 180 150 99999 /
NB-5200DTD 300×240×150 10 40 200 800 99999
NB-5200DTD 300×240×150 10 40 250 800 99999
NB-5200DTD 300×240×150 10 40 300 800 99999
NB-4200DTD 300×240×200 14.4 40 400 800 99999
NB25-12DTD 500×300×150 22.5 40 500 1000 99999
NB25-12DTD 500×300×150 22.5 40 600 1000 99999
