15t/24h Plate Ice Machine

Brand:NANBEI

Model:ZNBB15ZDS/FA

Application:

Product Introduction

  Application Field:

● Aquatic product processing

● Fresh preservation, cooling and transportation

● Cold water temperature reduction system

● Ice making plant

● Dye chemical industry

● Temperature reduction

● Medical treatment and medicine



Plate Ice Machine Features:

Reasonable Water Circulation System

NANBEI plate ice machine is with integrated structure design. The ice making water is pumped to the water distributor at the top of the evaporator and flows evenly on the surface of plate evaporator, and then gathers into the water tank at the bottom of the evaporator to continue the next circulation; then the water converts to thicker and thicker ice layer on evaporator surface. This special water circulation system makes plate ice produced smoothly.

Stable Operation

NANBEI always aims at researching and manufacturing high efficient and energy-saving refrigeration system; the plate ice machine adopted international ice machine processing technology with mature experience, it can produce quality plate ice and operate constantly and safely.

Sanitary Ice

NANBEI plate ice is made inside plate evaporators without being exposed to ambient conditions, so the ice is transparent and sanitary, and it can be stored for a longer time because of its thickness from 4mm to 30mm, moreover it completely meets the requirement of HACCP and FDA certification

Water Saving

NANBEI plate ice machine recycles all unfrozen water back to the water tank at the bottom of ice machine so as to ensure all water is converted to plate ice.



Plate Ice Machine Technical Specifications

Model

Capacity(tons/24h)

Refrigeration Capacity (kW)

Total Power

Weight (kg)

Dimension (L*W*H)(mm)

ZNBB3ZDS/FA

3

17.5

8.2 kW

1600

2000*1500*2200

ZNBB4ZDS/FA

4

23.5

10.8 Kw

1800

2000*1500*2200

ZNBB5ZDS/FA

5

29.5

13.9 kW

2200

2000*1800*2200

ZNBB8ZDS/FA

8

47

29.3 kW

3100

2500*2300*2500

ZNBB10ZDS/FA

10

59

28.3 kW

4000

3500*2300*2500

ZNBB15ZDS/FA

15

88.5

37 kW

4500

4100*2300*2500

ZNBB20ZDS/FA

20

118

51 kW

5200

4700*2300*2500

ZNBB25ZDS/FA

25

147.5

62 kW

6300

5300*2300*2500

ZNBB30ZDS/FA

30

177

65 kW

7100

6000*2300*2800

ZNBB35ZDS/FA

35

206.5

79.5 kW

8500

6500*2300*2800

ZNBB40ZDS/FA

40

236

91.5 kW

9800

7200*2300*2800

ZNBB45ZDS/FA

45

265.5

103.5 kW

11000

7500*2300*2800

ZNBB50ZDS/FA

50

295

118 kW

12500

8200*2300*3000



★Note:

1) Standard Supply Power: 380V/50Hz/3Phase. Ice machine can be customized upon non-standard power.

2) Cooling System: Water Cooling System

3) Supply Water: Fresh Water

4) Refrigerant: R22/R404a

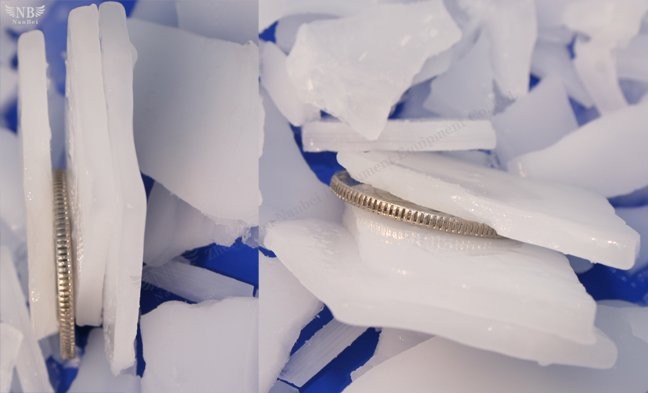

5) Plate Ice Thickness: 4~30mm

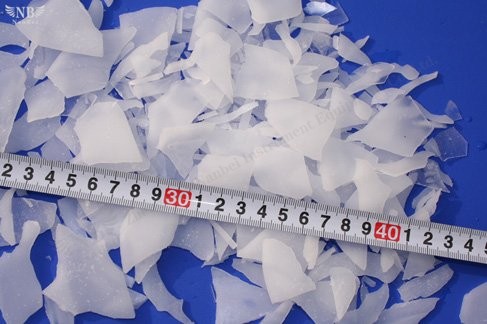

6) Plate Ice Size: (20-40mm)*(30-50mm)

7) Standard Working Condition: Ambient temperature: 25; Water supply temperature: 16; Evaporation temperature: -15.

8) Applicable Working Condition: Ambient temperature: 5~40; Water supply temperature: 0~40.

9) Specifications are subject to change without notice.
